Minirýpadlo RIPPA R32

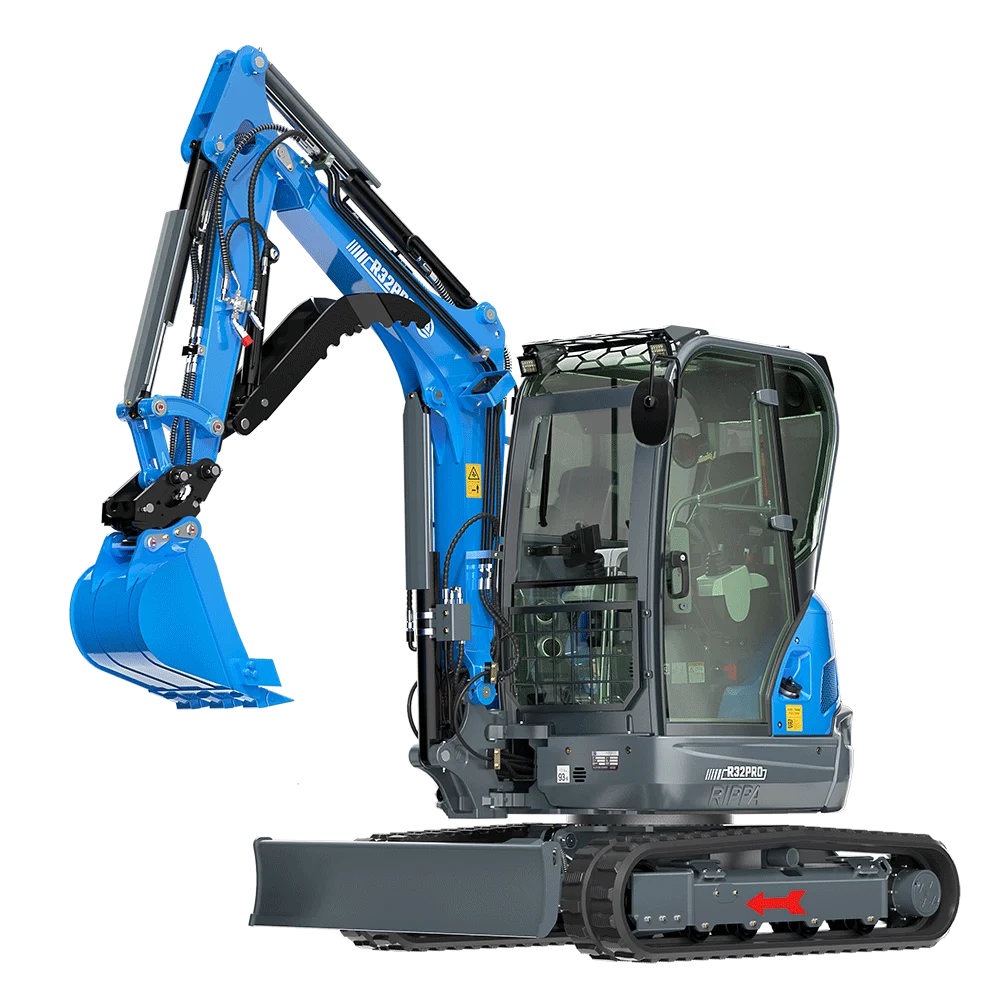

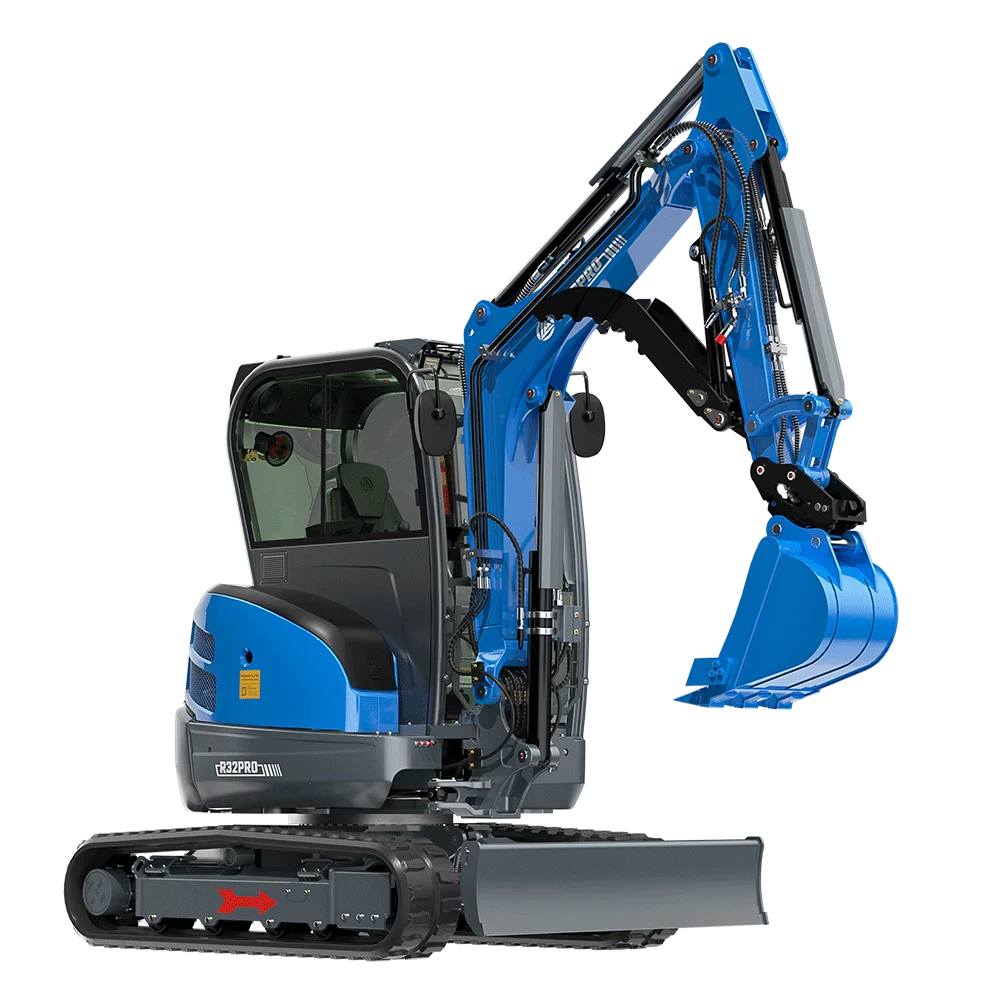

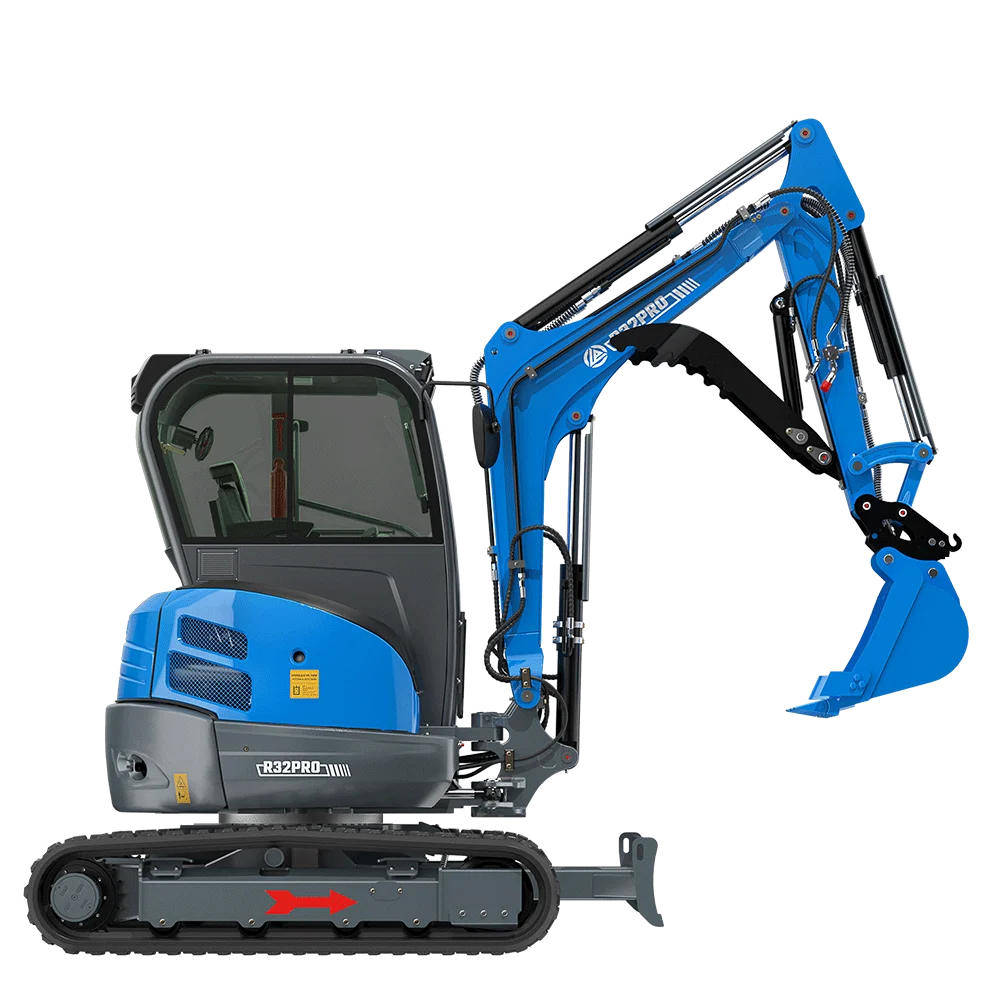

The Minirýpadlo RIPPA R32 is a 3.2-ton zero tail swing excavator built for demanding construction and landscaping projects. It is powered by the Kubota V1505 engine, offering 18.2 kW (24.4 HP) output for reliable performance.

The R32 delivers 200 bar system pressure with a flow of 41.6 L/min, ensuring powerful hydraulic performance. With a digging depth of 1550 mm and maximum digging radius of 4190 mm, it combines compact design with excellent reach.

Key Features

●Engine: Kubota V1505, 18.2 kW (24.4 HP).

●Operating Weight: 3200 kg for high stability.

●Excavation Depth: 1550 mm.

●Digging Radius: 4190 mm.

●Hydraulic Pressure: 200 bar, 41.6 L/min flow.

●Travel Motor: Two-speed plunger motor with cushioned cycloidal swing motor.

●Design: Zero tail swing for confined areas.

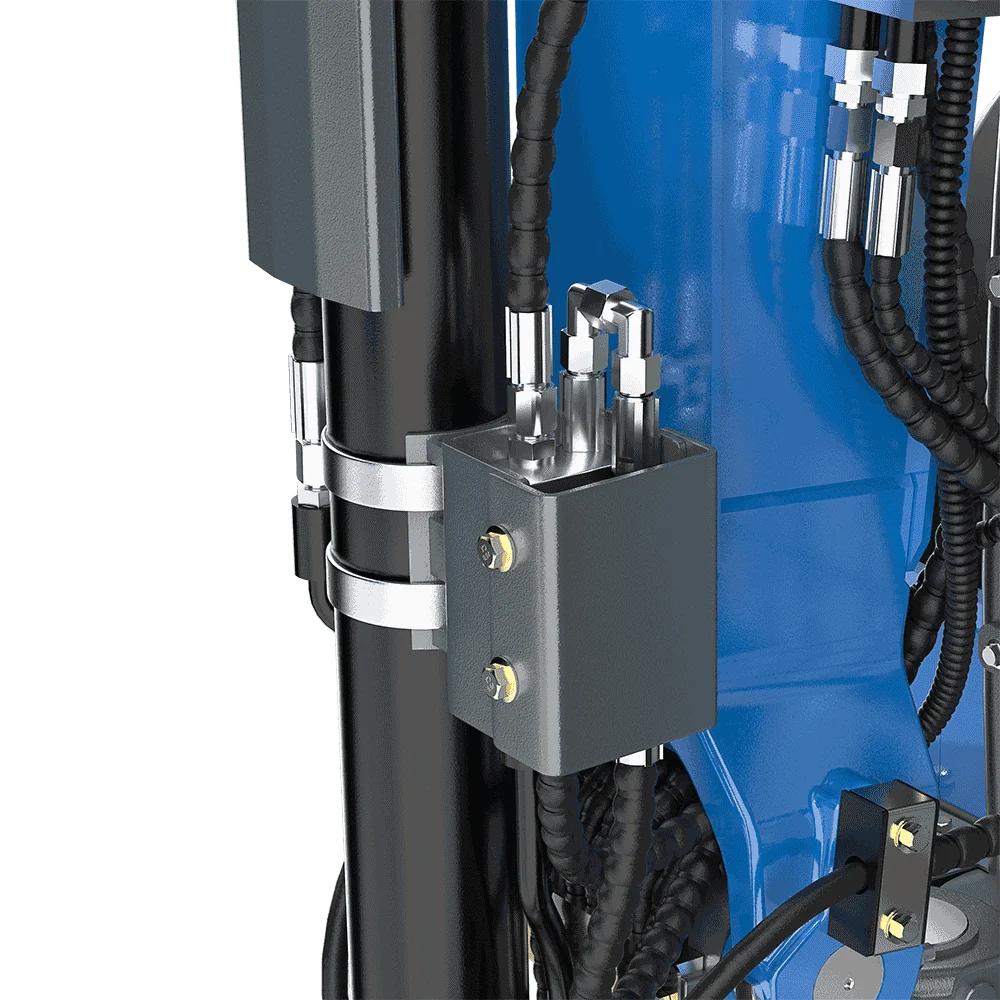

●Attachments: Hydraulic quick-change, thumb clamp available.

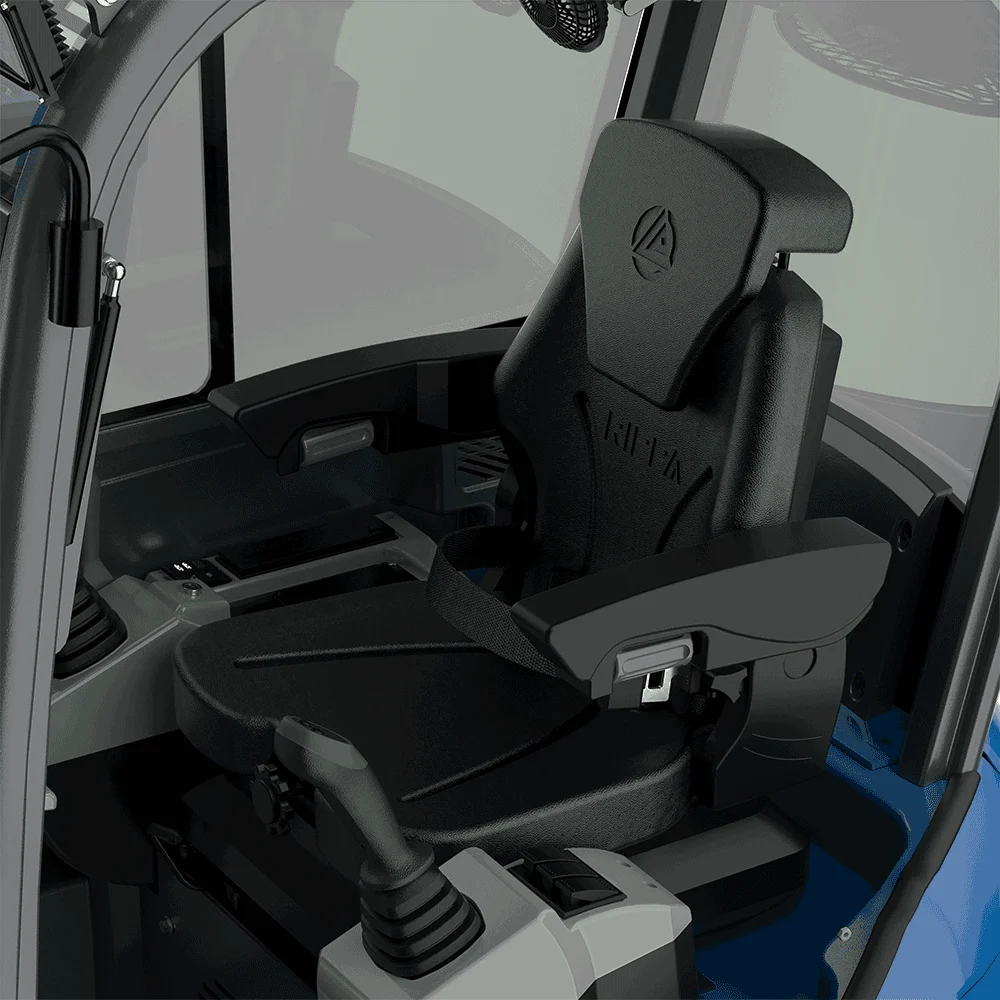

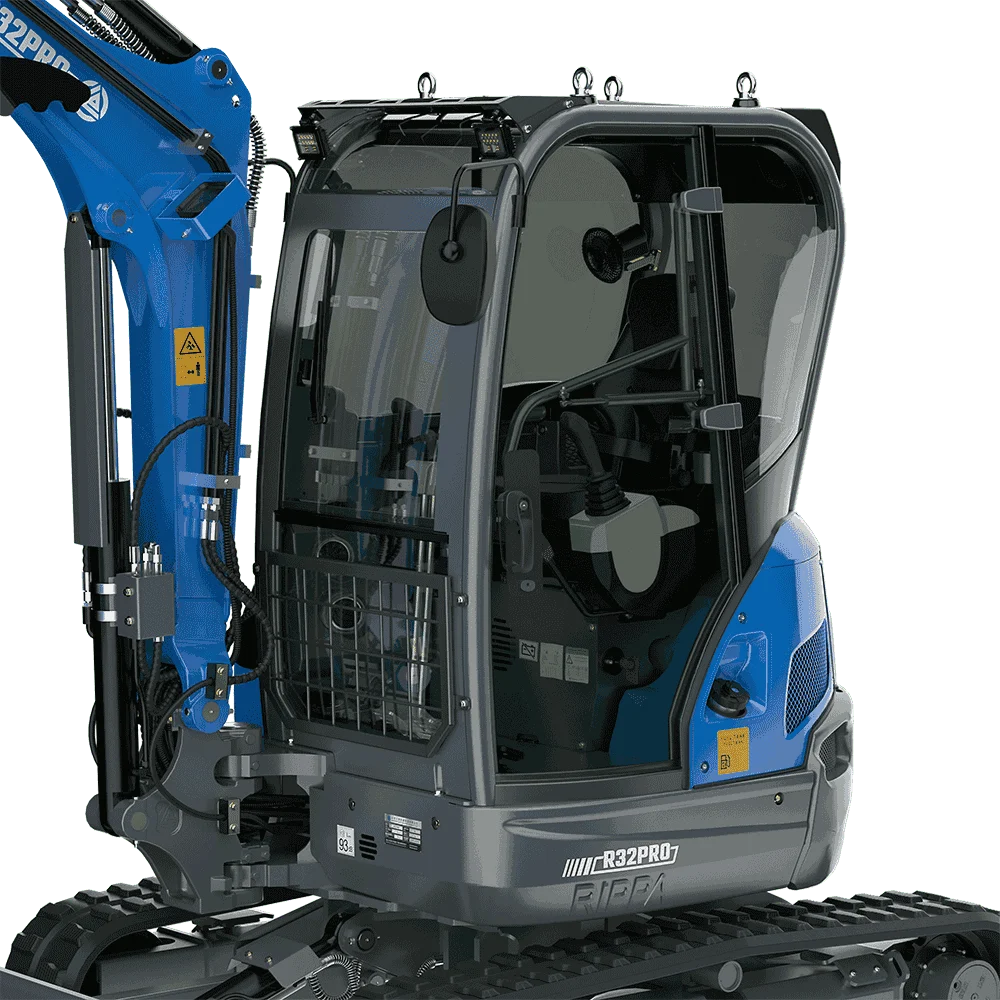

●Comfort: Equipped with cabin, ROPS/TOPS, and optional A/C.

Advantages

●Compact yet powerful for construction, roadwork, and municipal projects.

●Zero tail swing allows safe operation in tight spaces.

●Flexible attachments for multiple job applications.

●Global support and factory-direct pricing.

Špecifikácie

●Operating Weight: 3200 kg

●Engine: Kubota V1505, 18.2 kW / 24.4 HP

●Max Digging Depth: 1550 mm

●Max Digging Radius: 4190 mm

●Hydraulic Flow: 41.6 L/min

●Travel Speed: Two-speed plunger motor

●Tail Design: ZTS (Zero Tail Swing)
