Powerful Yanmar Engine, Multi-Function, Built for Heavy-Duty Tasks

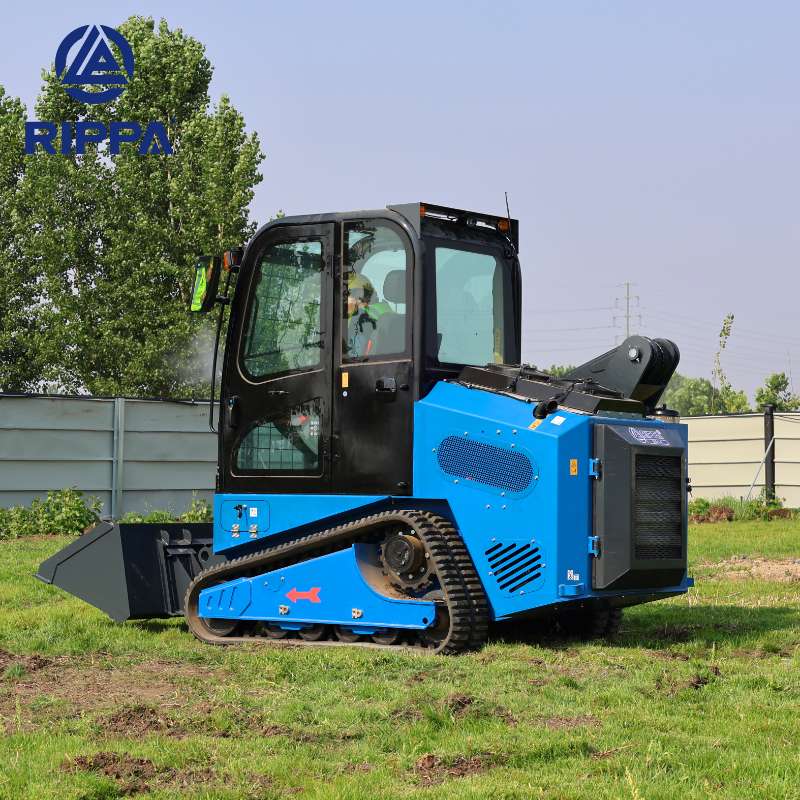

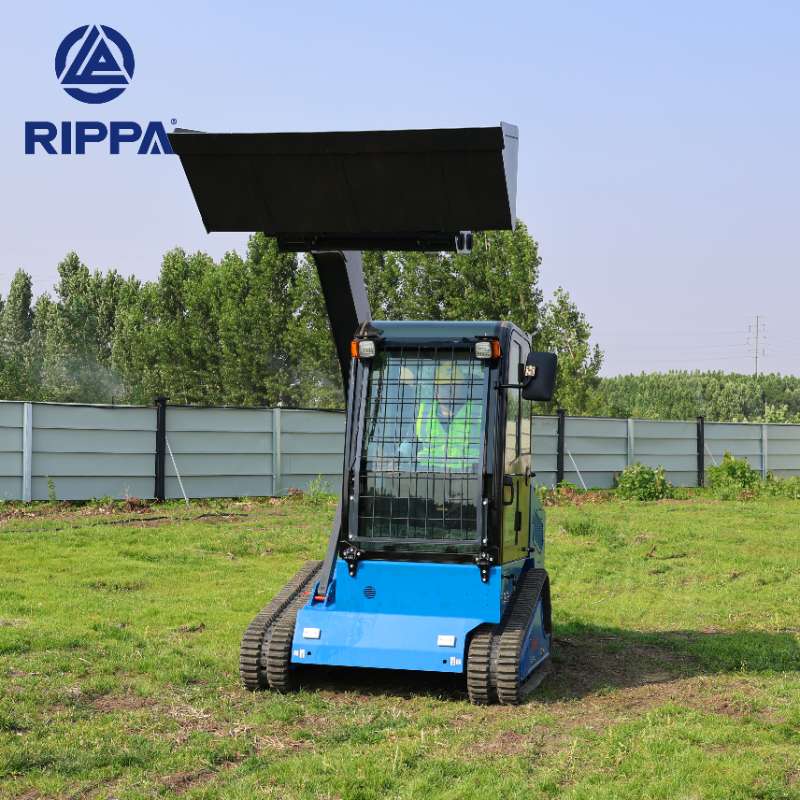

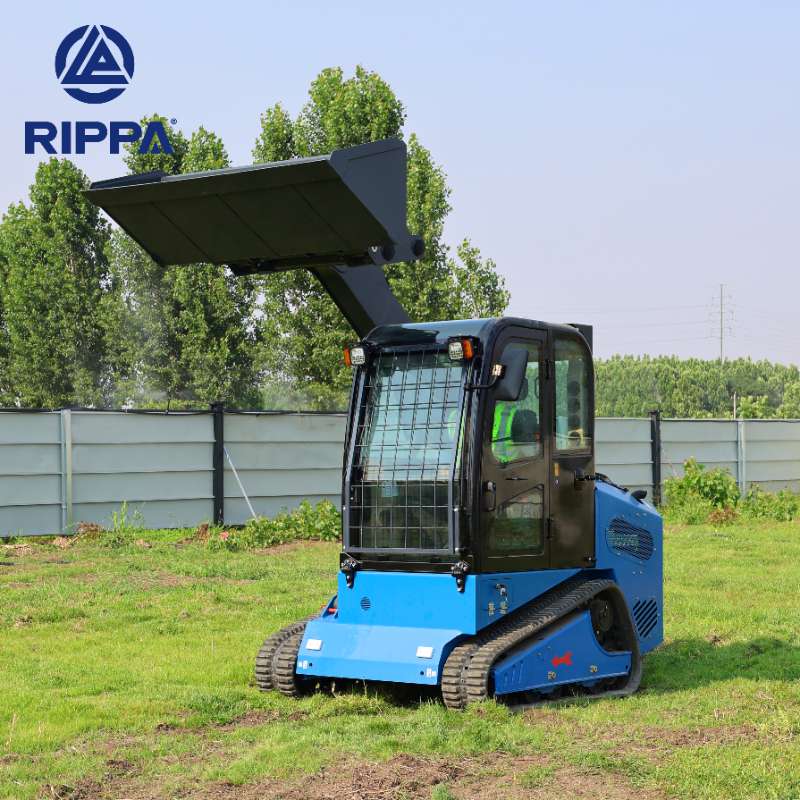

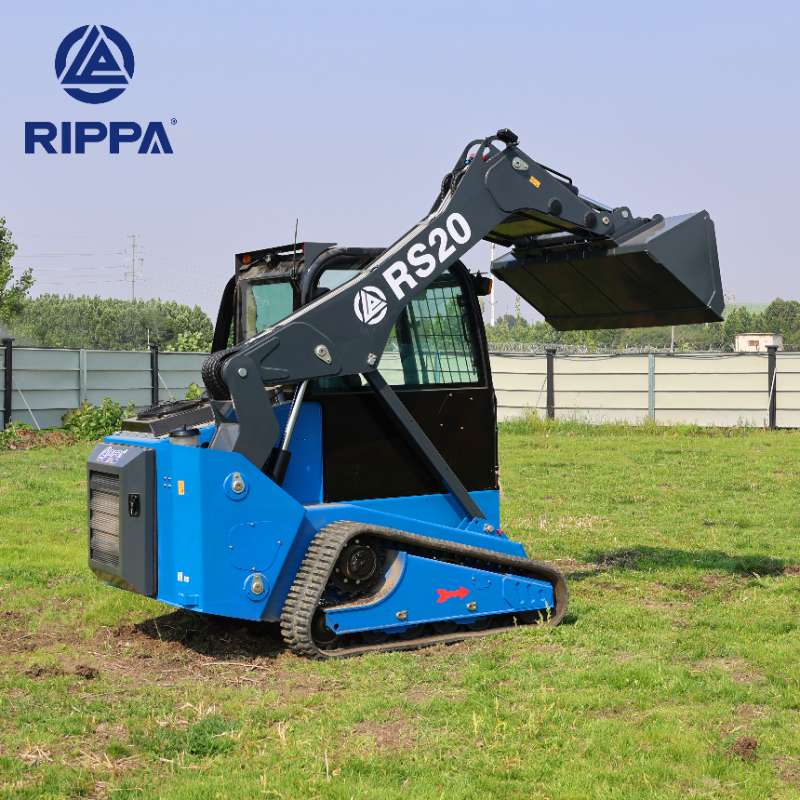

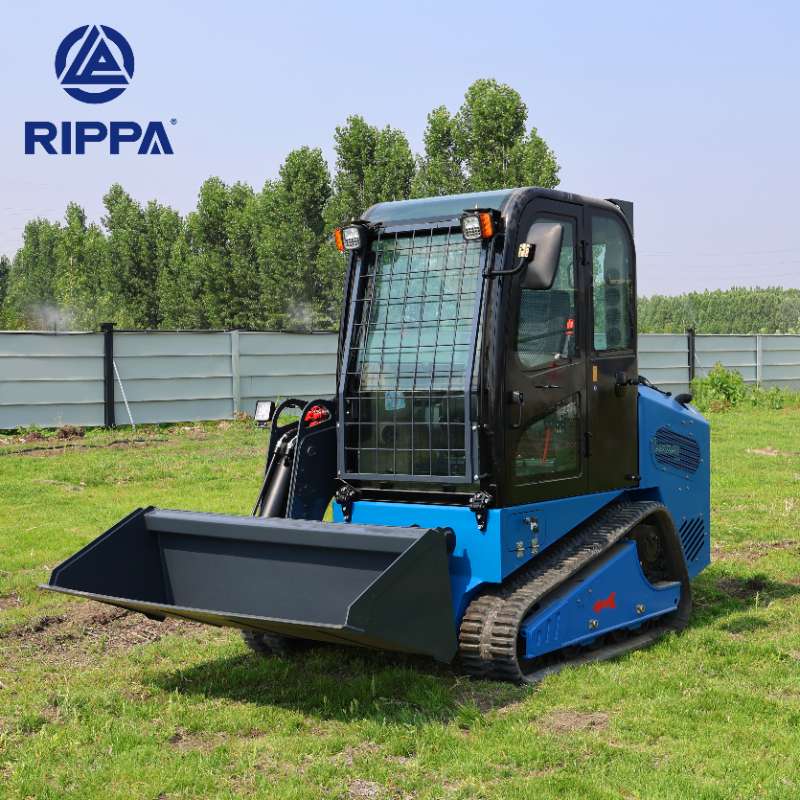

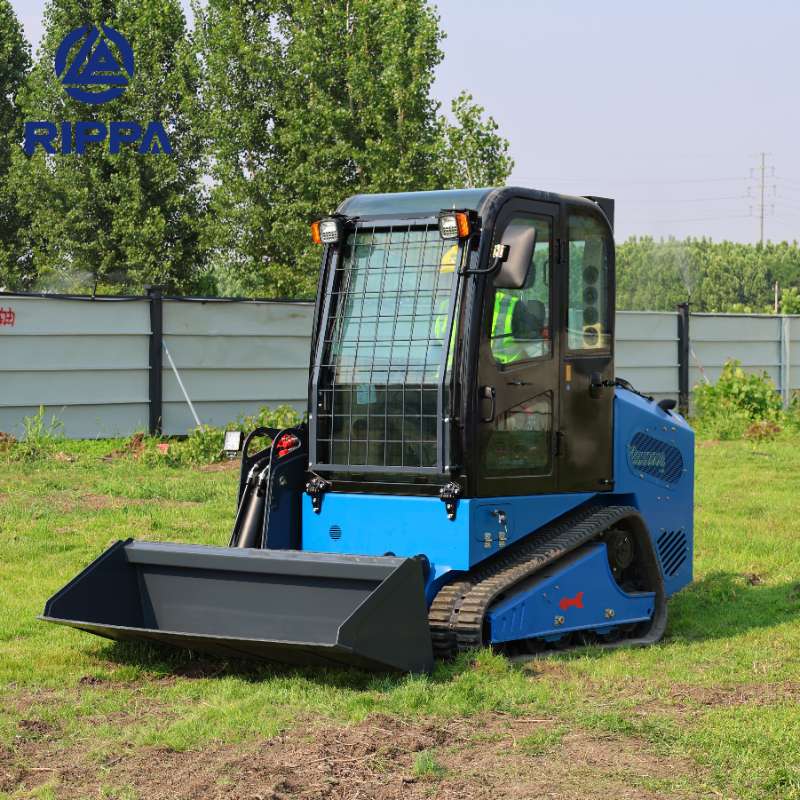

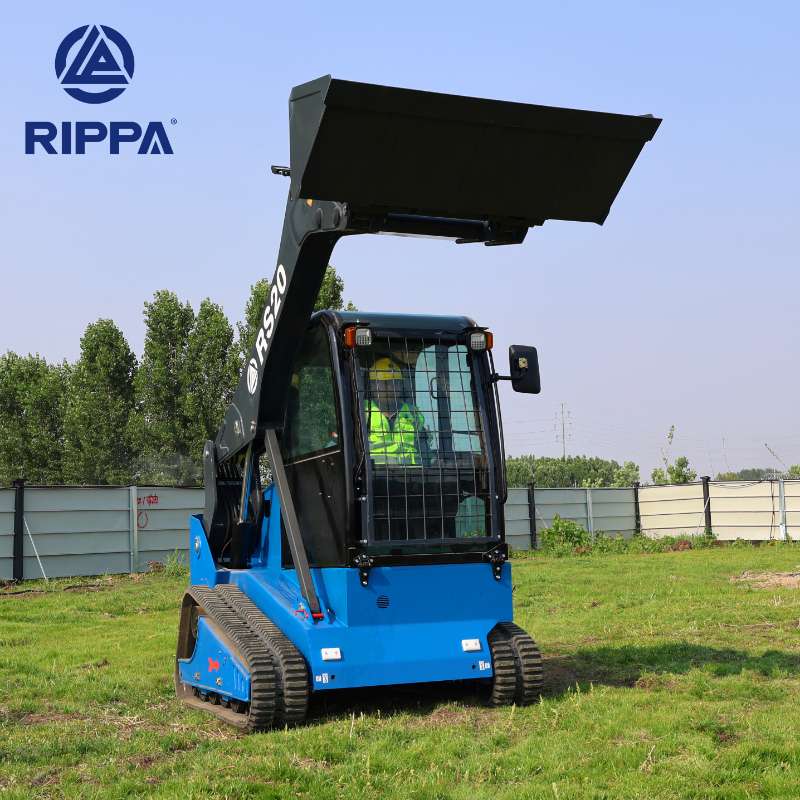

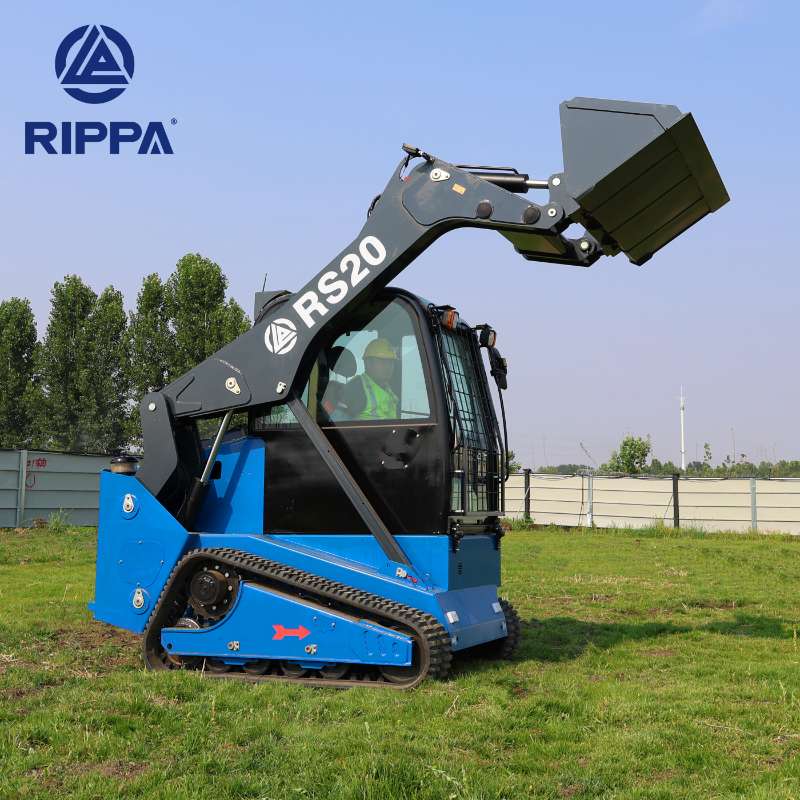

The RIPPA RS20 skid steer loader is a high-performance, heavy-duty machine powered by a robust Yanmar 4TNV98C engine, engineered to tackle demanding construction, mining, and industrial operations. With unmatched hydraulic flow, dual-speed mobility, and multi-attachment compatibility, the RS20 delivers exceptional productivity in every task.

🔧RS20 Technical Specifications at a Glance

     Engine and Hydraulic System

• Engine: Yanmar 4TNV98C (4-cylinder diesel)

• Rated Power: 49.9kW / 66.9hp

• Main Hydraulic Pump: Quad system (double closed pump + gear pump + makeup pump)

• Hydraulic Flow:

  • 108 + 108 + 35.7 + 108 L/min

  • Total Flow: 359.7 L/min

  • Pressure: 25.8–25.8–9.4–28.5 MPa

• Valve System: Load-sensing multi-way valve for precise flow control

     Travel and Drive System

• Motor Type: Dual-speed piston motor

• Drive Speed:

  • Low Speed: 5.8 km/h (3.6 mph)

  • High Speed: 10 km/h (6.2 mph)

        Travel Mode: Track-type (standard)

⚙️ Capacity & Performance

• Operating Weight: 4225kg / 9315 lb

• Rated Load Capacity: 1050kg / 2315 lb

• Tipping Load: 2100kg / 4629 lb

• Bucket Capacity: 0.4m³ / 14.1 cu.ft

• Max Discharge Height: 2250mm / 88.6 in

• Dump Reach: 1360mm / 53.5 in

• Minimum Ground Clearance: 230mm / 9.1 in

• Max Discharge Distance: 580mm / 22.8 in

🧰 Multi-Function Attachments & Hydraulic Interface

The RIPPA RS20 skid steer loader supports a wide range of attachments with its dual auxiliary hydraulic lines and one return line, allowing for fast and easy connections.

   Compatible Attachments (Quick Coupler Ready)

• Rotary drill

• Hydraulic breaker

• Four-in-one bucket

• Dozer blade

• Sweeper

• Ripper

• Pallet forks

• Auger & more

➡️ Universal quick attach interface – swap tools in 30 seconds for maximum uptime.

🛡️Comfort, Safety & Control

• Cabin: Enclosed panoramic design for full protection and comfort

• Entry: Side-entry for easier access

• Climate Control: Air-conditioned operator space

• Quick Coupler: Standard with optional upgrades

• Safety: Enhanced visibility, rollover protection structure (ROPS)

🏗️Built for Demanding Applications

Ideal for:

• Large construction sites

• Mining and quarrying

• Heavy material handling

• Municipal road maintenance

• Snow removal and landscaping

The RIPPA RS20 skid steer loader is designed to excel in high-load, high-intensity environments, providing stable, continuous power and superior operational flexibility.

✅ Why Choose RIPPA RS20 Skid Steer Loader?

• High-performance Yanmar diesel engine

• Largest flow hydraulic system in its class (359.7 L/min)

• Dual-speed drive system for jobsite agility

• One machine for multiple jobs – universal quick-attach system

• Fully enclosed, operator-friendly design

• Factory direct – OEM/ODM & global dealership support

• Available from overseas warehouse for fast delivery
