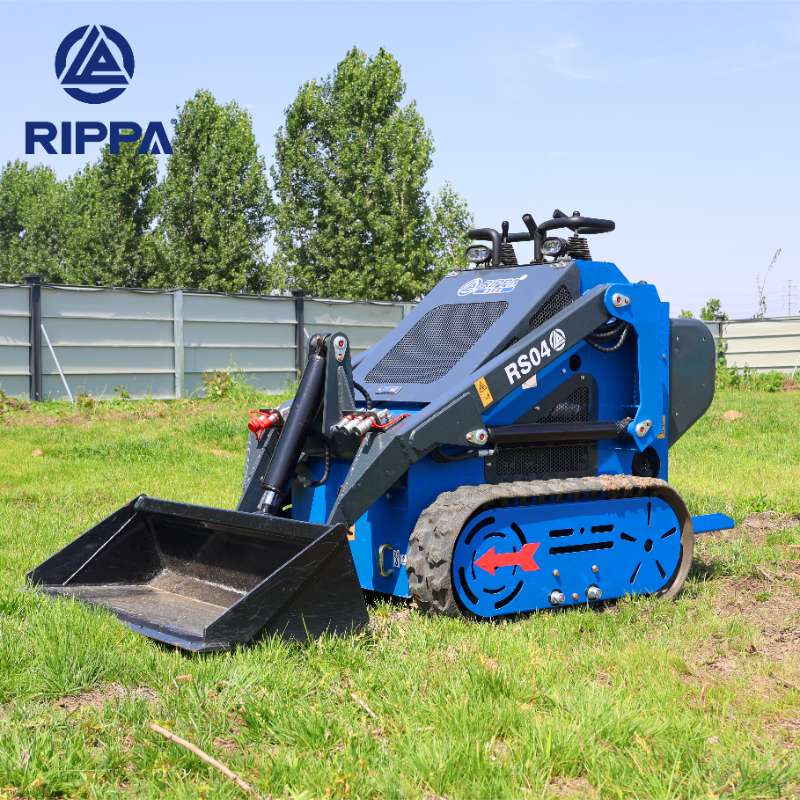

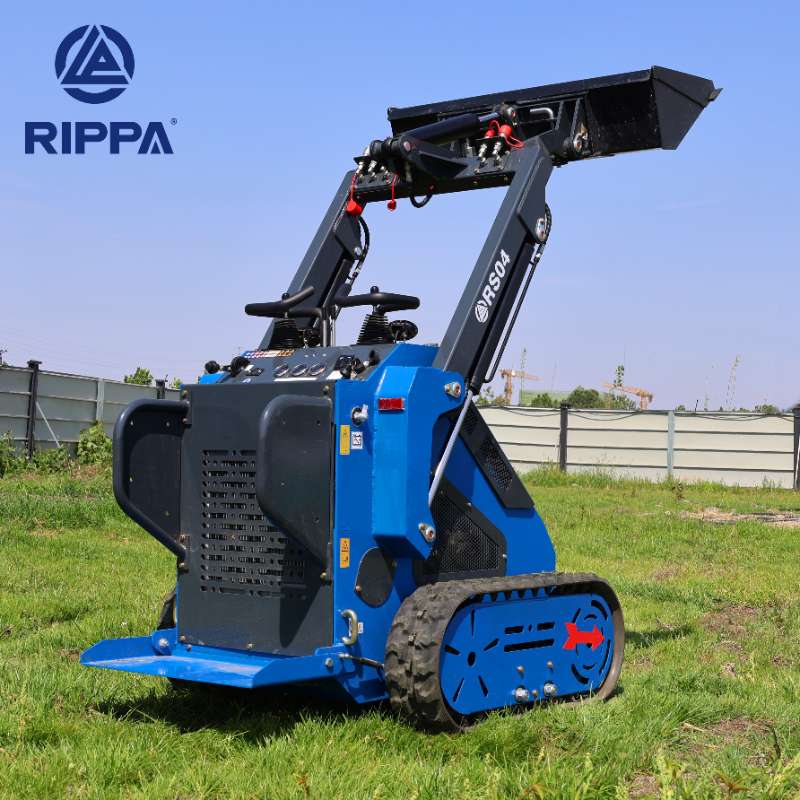

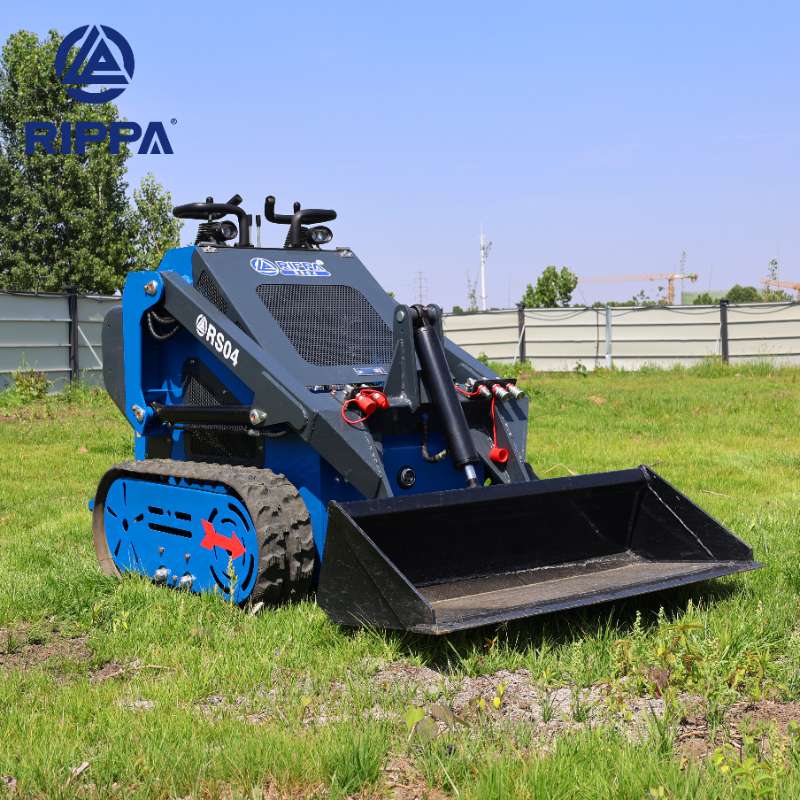

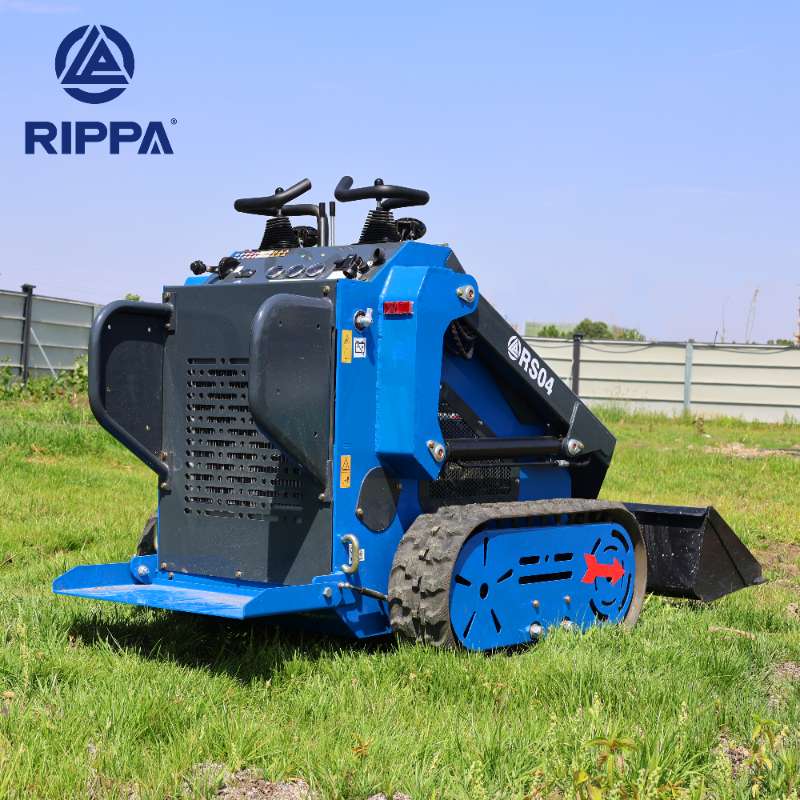

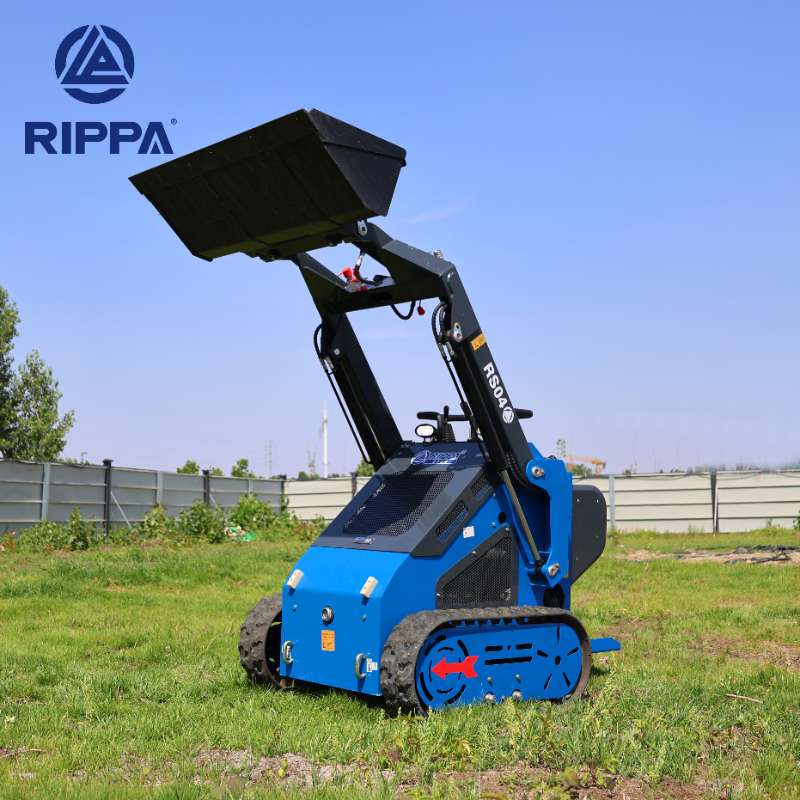

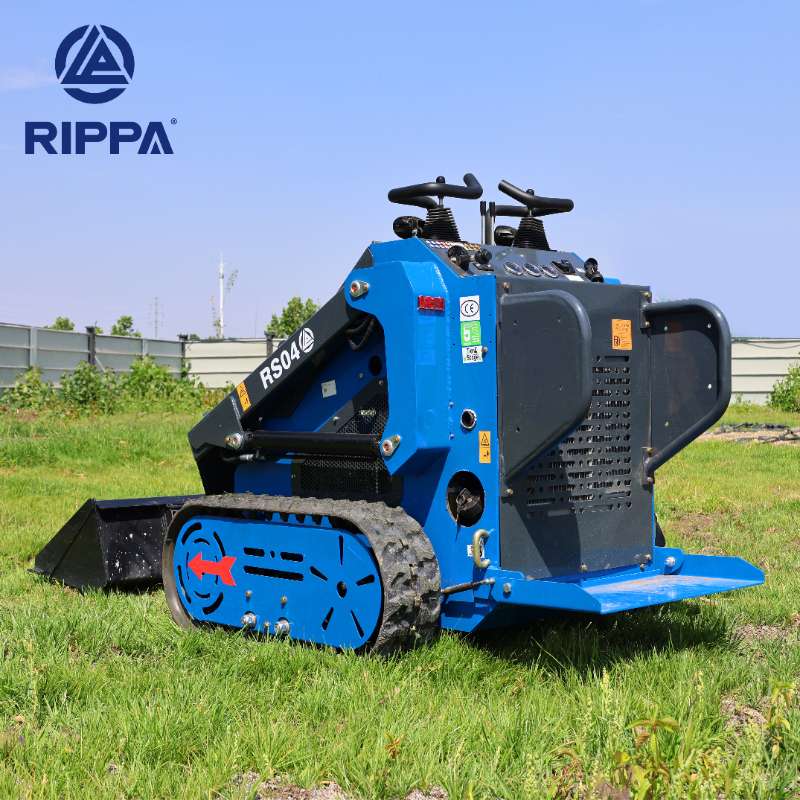

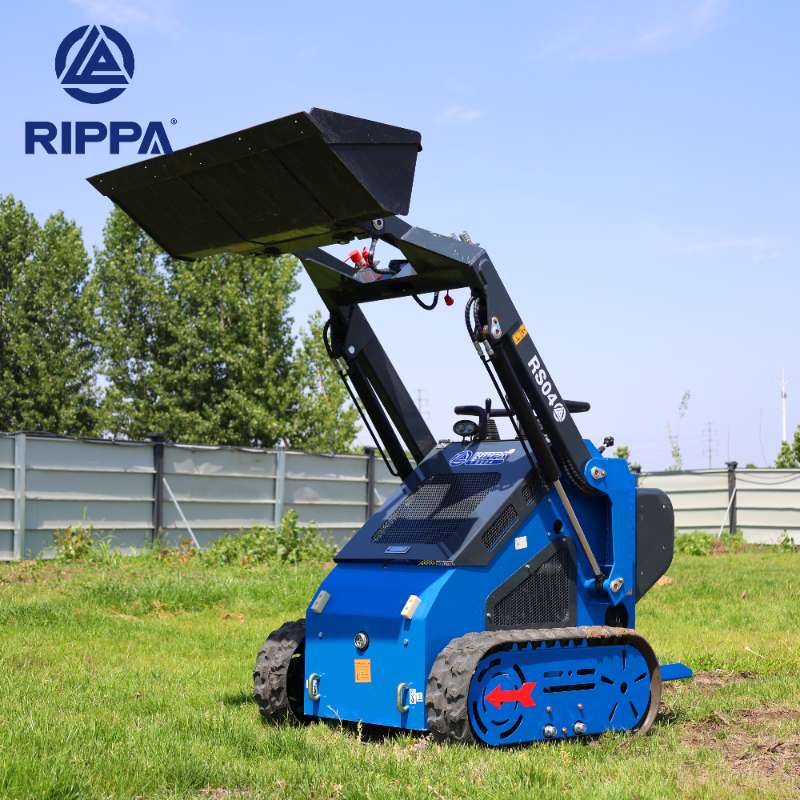

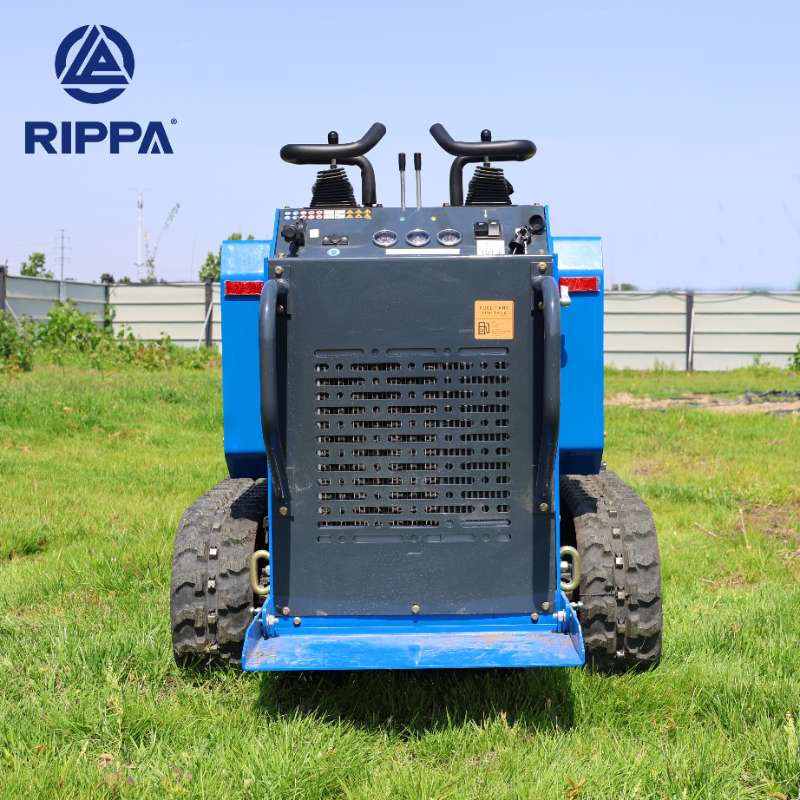

RIPPA RS04 Skid Steer Loader

Looking for a reliable and efficient compact loader? The RIPPA RS04 skid steer loader combines powerful performance, lightweight design, and versatility to meet the demands of construction, agriculture, landscaping, and more. Equipped with a Kubota Z482 diesel engine, the RS04 offers the ideal balance of strength and maneuverability.

🔧 Key Specifications of RIPPA RS04 Skid Steer Loader

    Engine and Hydraulic System

• Engine Brand: Kubota Z482 (2-cylinder, diesel)

• Rated Power: 8.3kW / 11.1hp

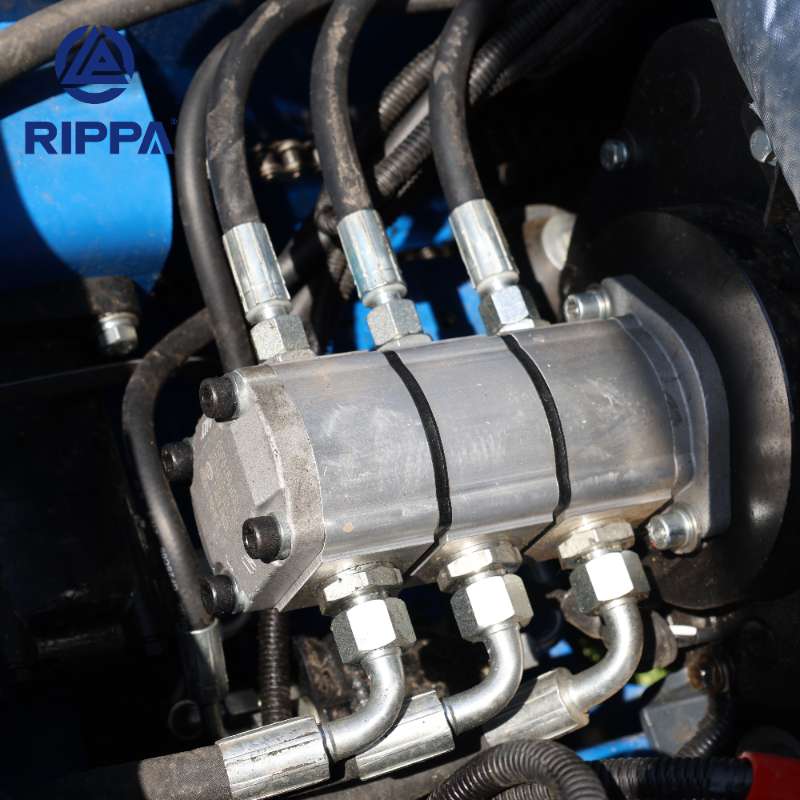

• Main Pump Type: Triple gear pump

• Hydraulic Flow Rate: 36+18+18 L/min (Total: 72 L/min)

• Hydraulic Pressure: 9.5–9.8–4.8 MPa

• Travel Motor: Single-speed orbital motor

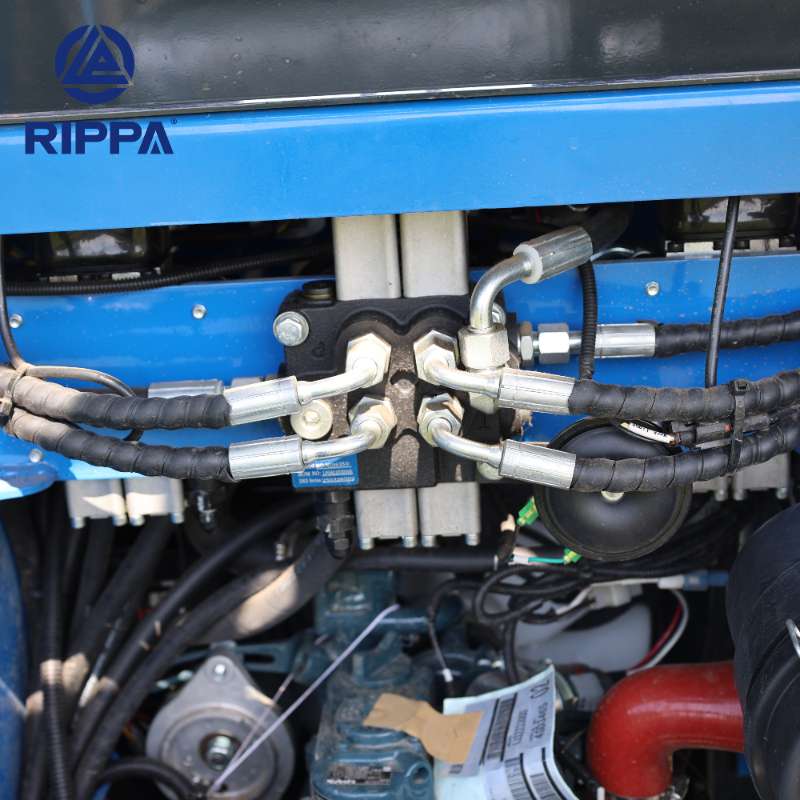

• Valve Type: Mechanical multi-way valve (3x)

Performance and Load Capacity

• Operating Weight: 890kg / 1958 lb

• Rated Load Capacity: 350kg / 771 lb

• Tipping Load: 700kg / 1543 lb

• Bucket Capacity: 0.15m³ / 5.28 cu.ft

• Dump Height: 1553mm / 61.1 in

• Dump Reach: 550mm / 21.7 in

• Minimum Ground Clearance: 108mm / 4.25 in

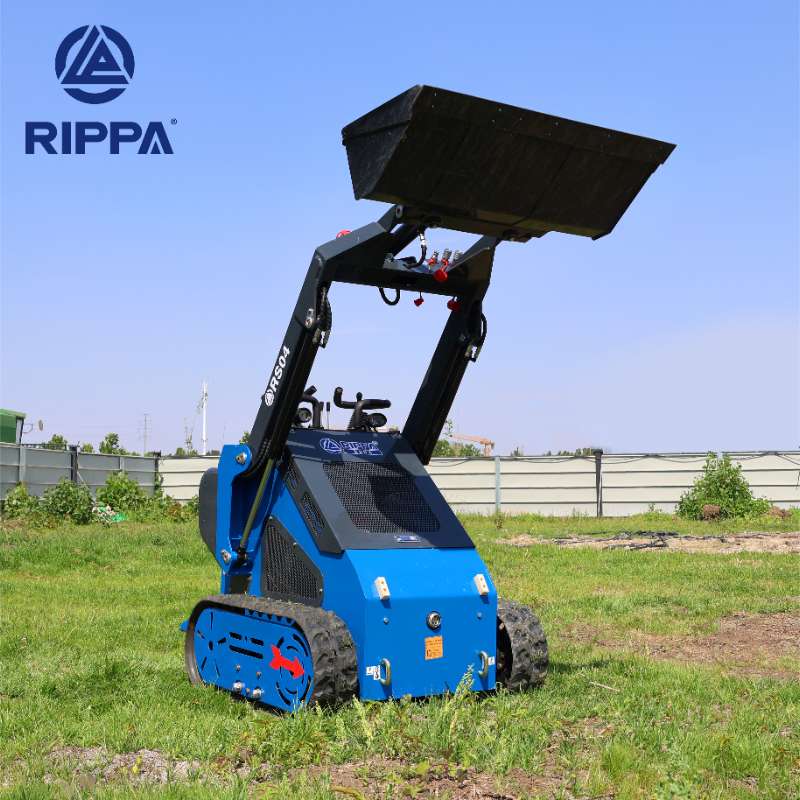

• Max Discharge Height: 2080mm / 81.9 in

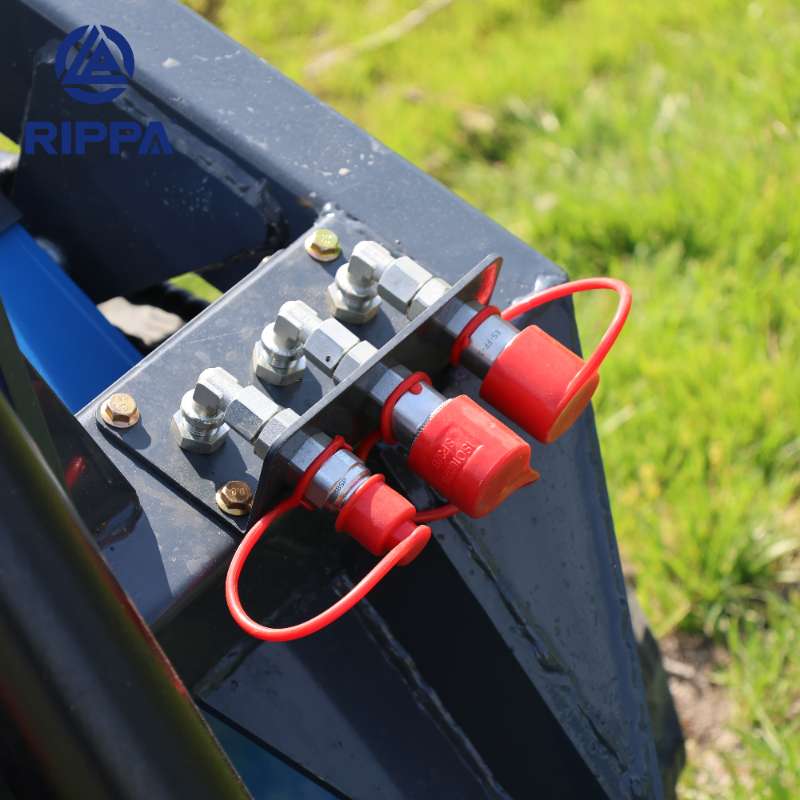

     Hydraulic Auxiliary Circuit

• Flow Rate: 36L/min (9.5 gpm)

• Auxiliary Circuits: 2 groups, 5 ports

• Supported Attachments: All attachments under 550kg

• Optional Attachments:

  • 4-in-1 Bucket

  • Sweeper

  • Breaker Hammer

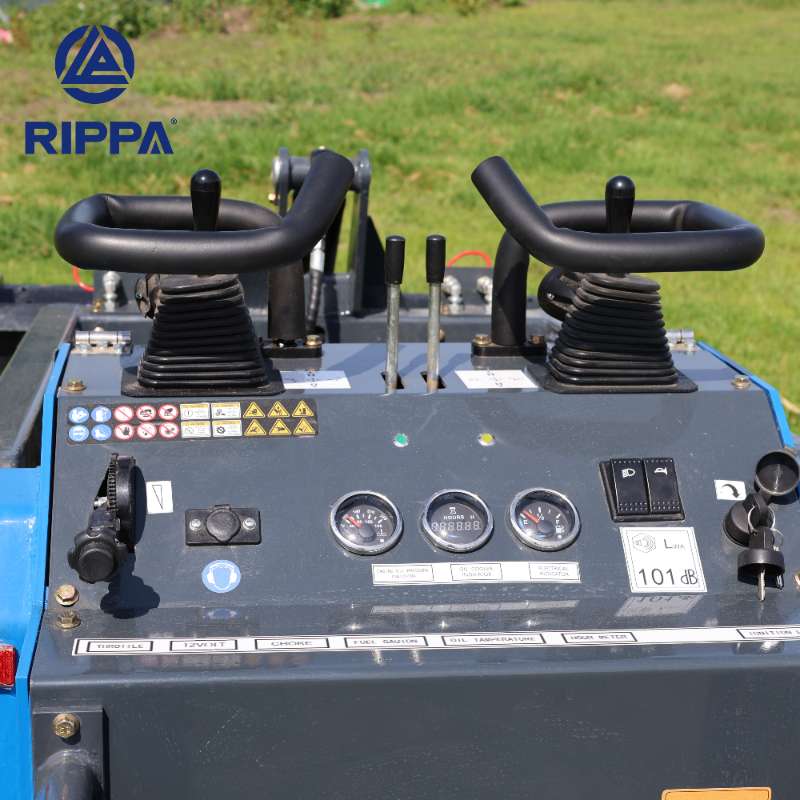

🚜 Operator-Friendly Features

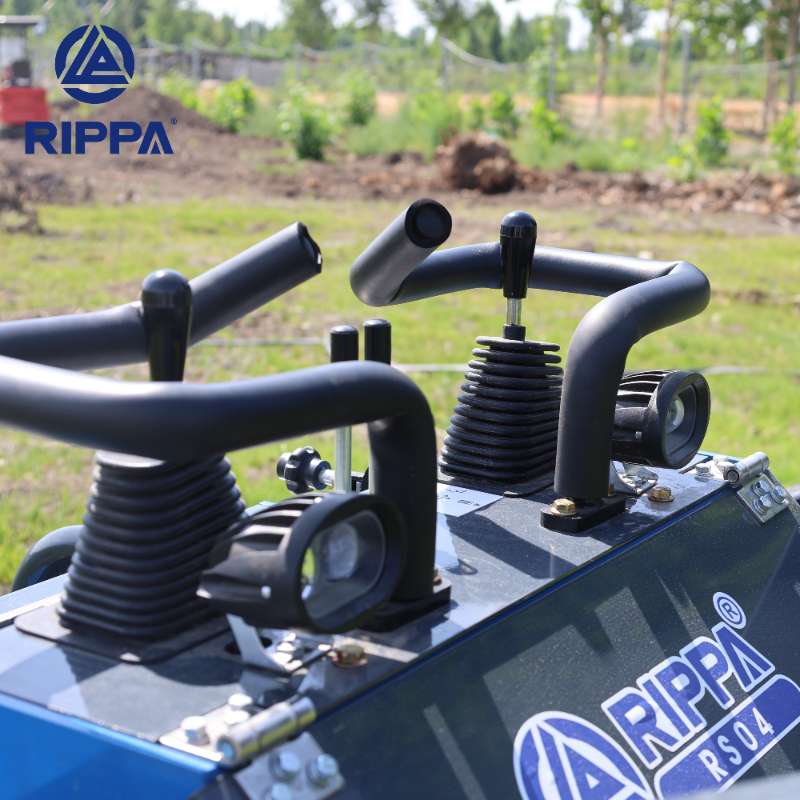

    Driving and Cabin

• Travel Speed: 3km/h (1.86 mph)

• Chassis: Standard wheel-type

• Cabin: Open cabin

• Quick Coupler: Optional mechanical quick-hitch

• Air Conditioning: Not available

🌍 Applications of RIPPA RS04 Skid Steer Loader

• Urban and residential construction

• Landscaping and green maintenance

• Agricultural material handling

• Warehouse and narrow space operations

✅ Why Choose RIPPA RS04 Skid Steer Loader?

• Direct factory supply with competitive pricing

• Global delivery with overseas warehouse support

• Robust build with trusted Kubota engine

• Versatile attachment compatibility

• OEM and dealership opportunities available
