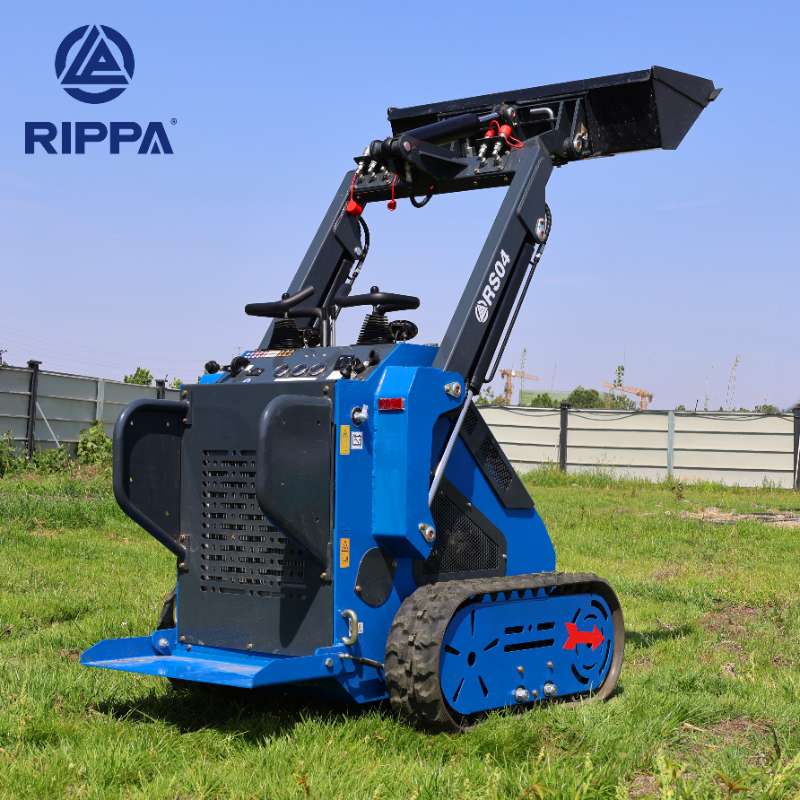

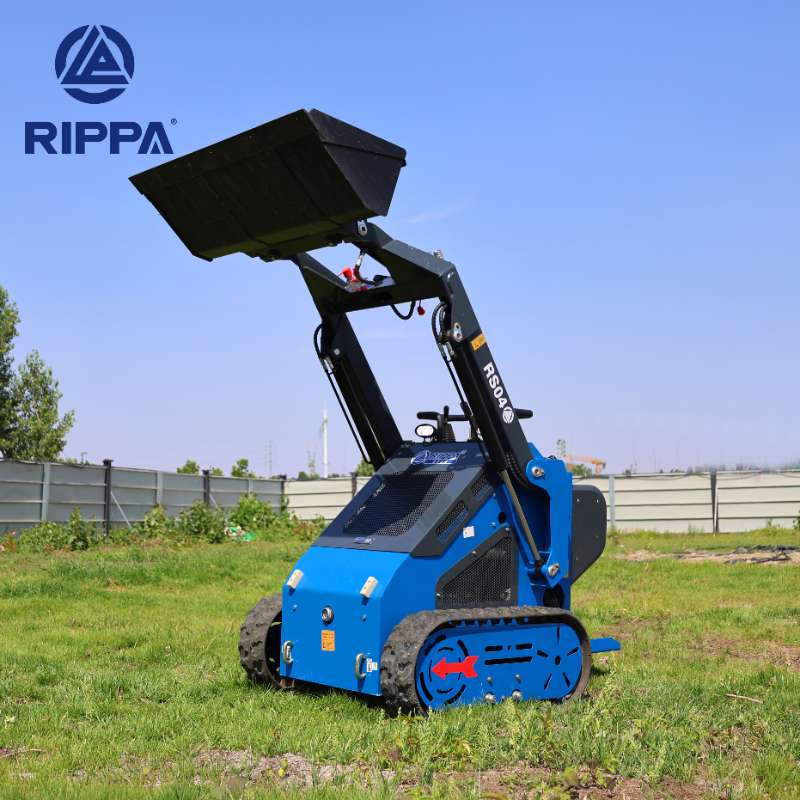

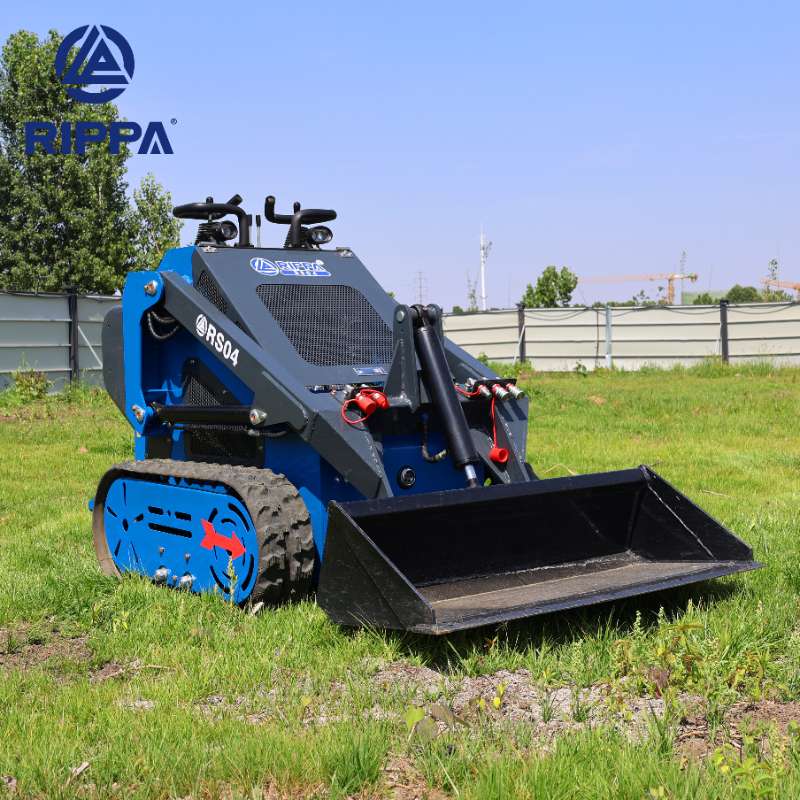

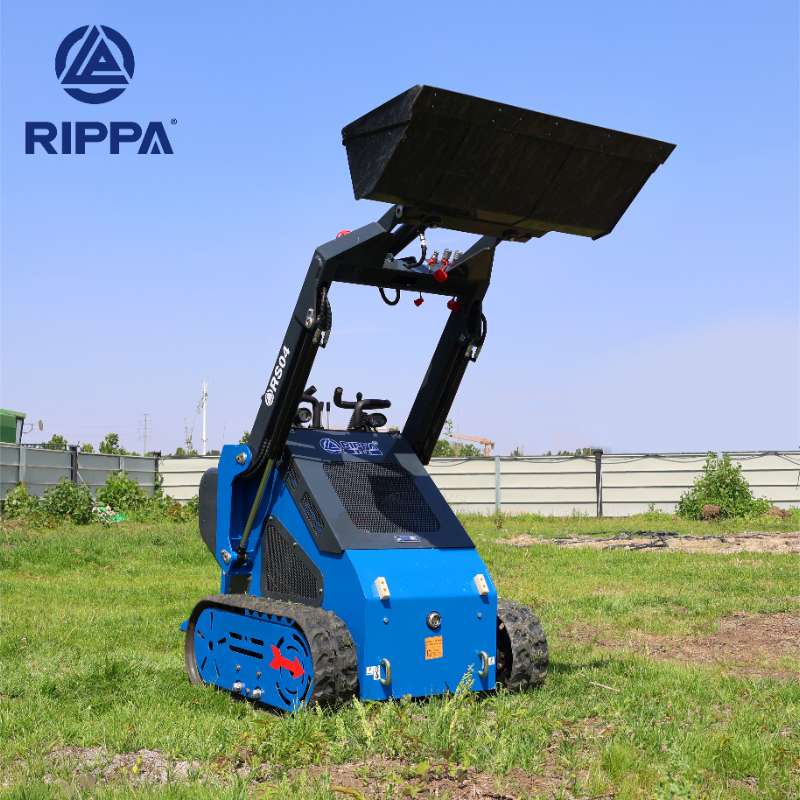

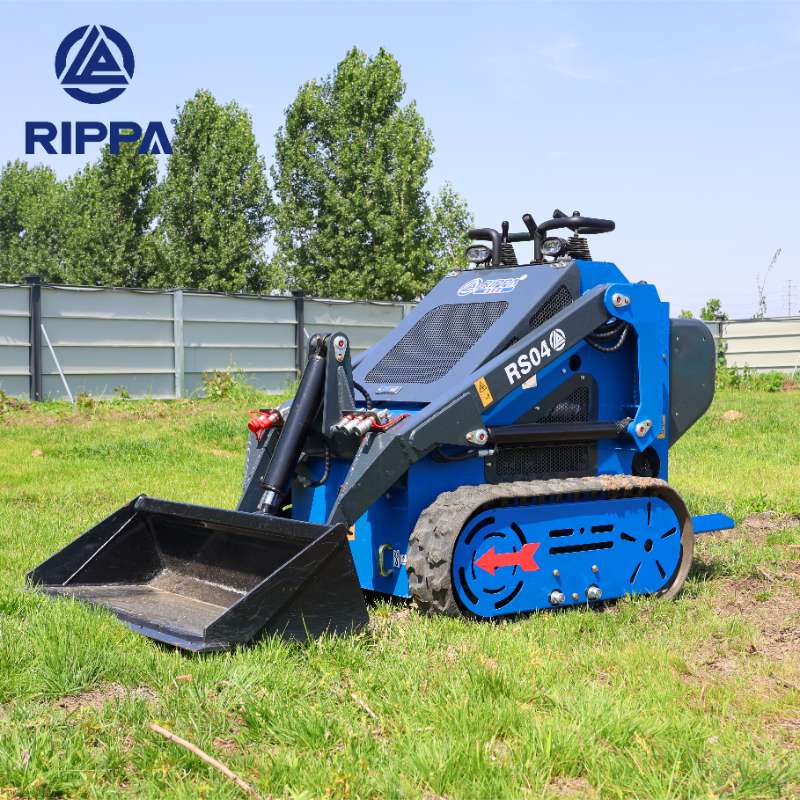

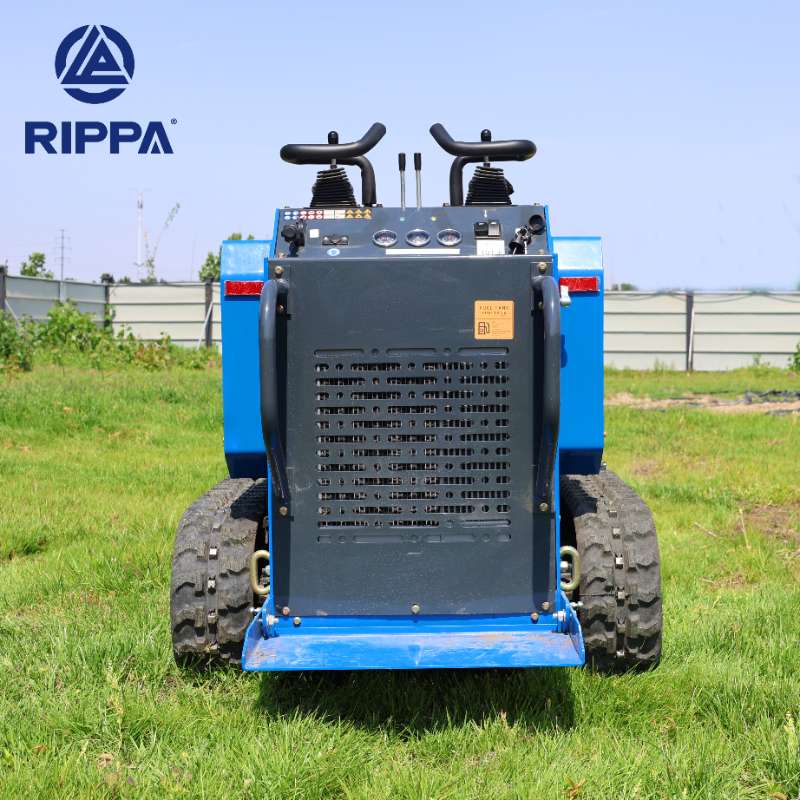

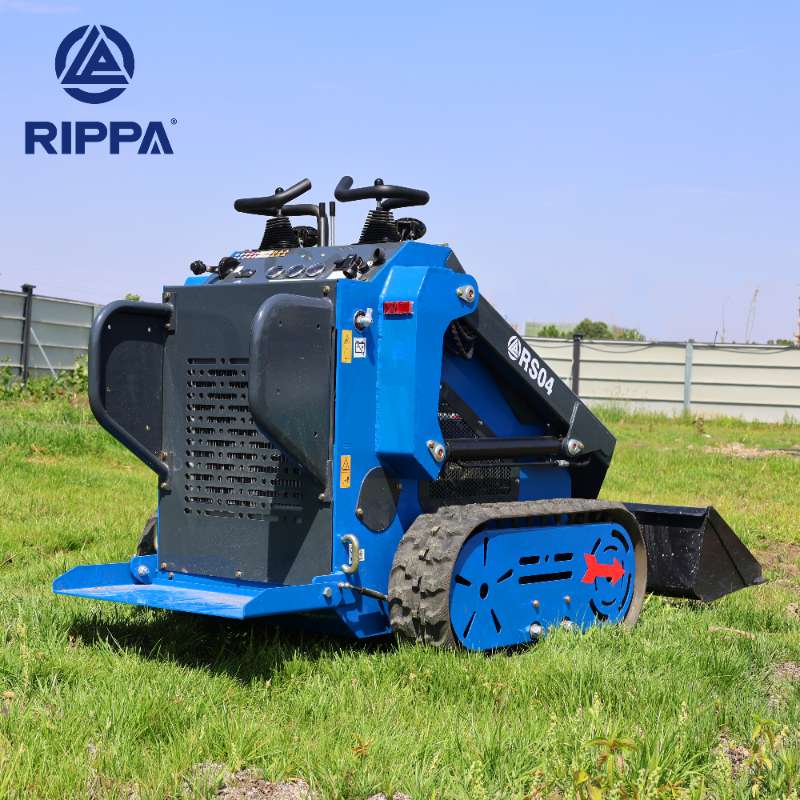

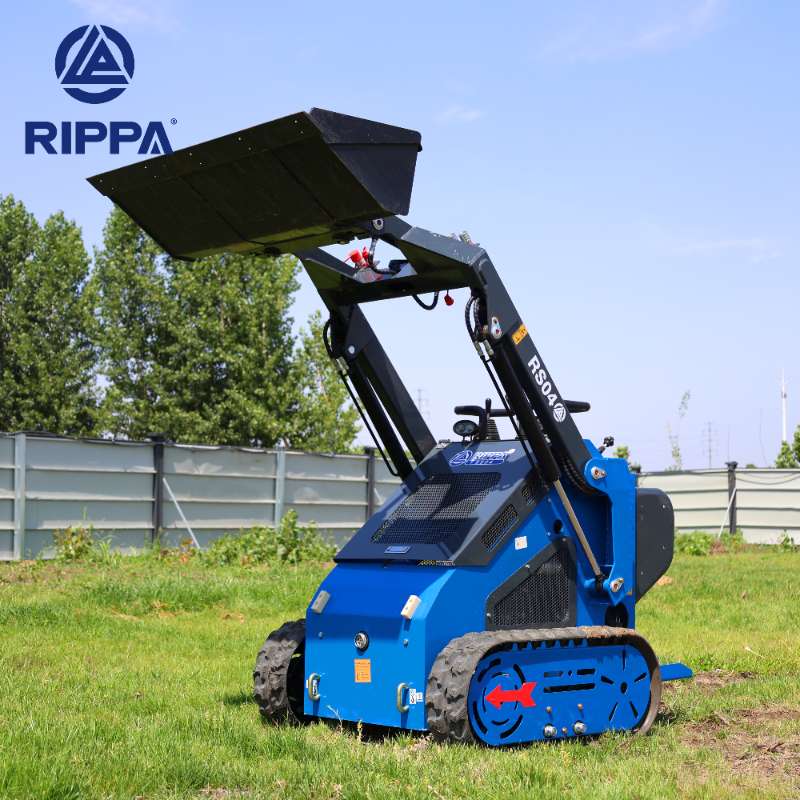

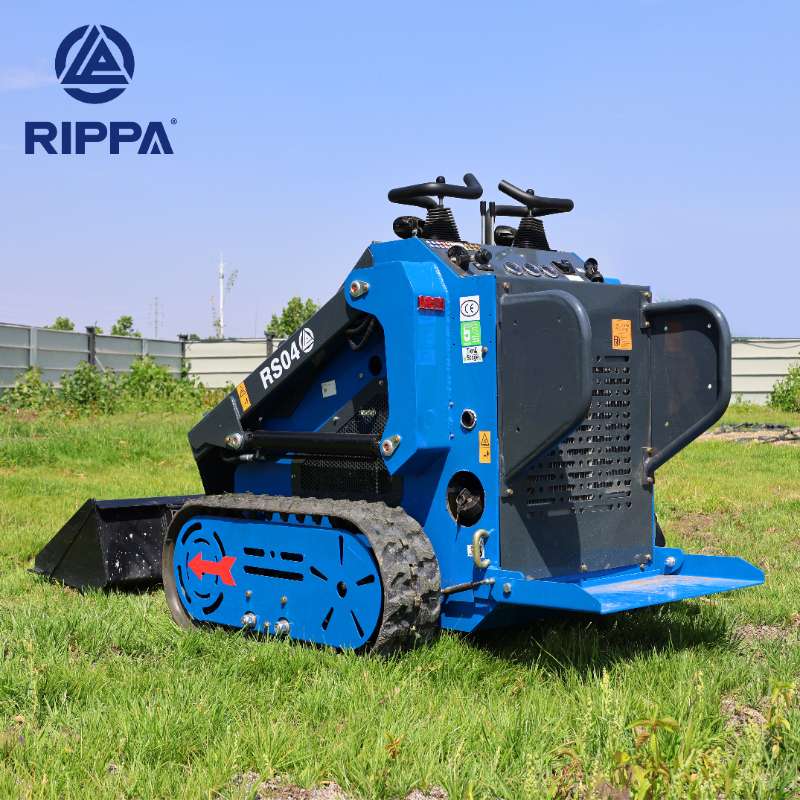

RIPPA RS04 Skid Steer Loader

Looking for a reliable and efficient compact loader? The RIPPA RS04 skid steer loader combines powerful performance, lightweight design, and versatility to meet the demands of construction, agriculture, landscaping, and more. Equipped with a Kubota Z482 diesel engine, the RS04 offers the ideal balance of strength and maneuverability.

🔧 Key Specifications of RIPPA RS04 Skid Steer Loader

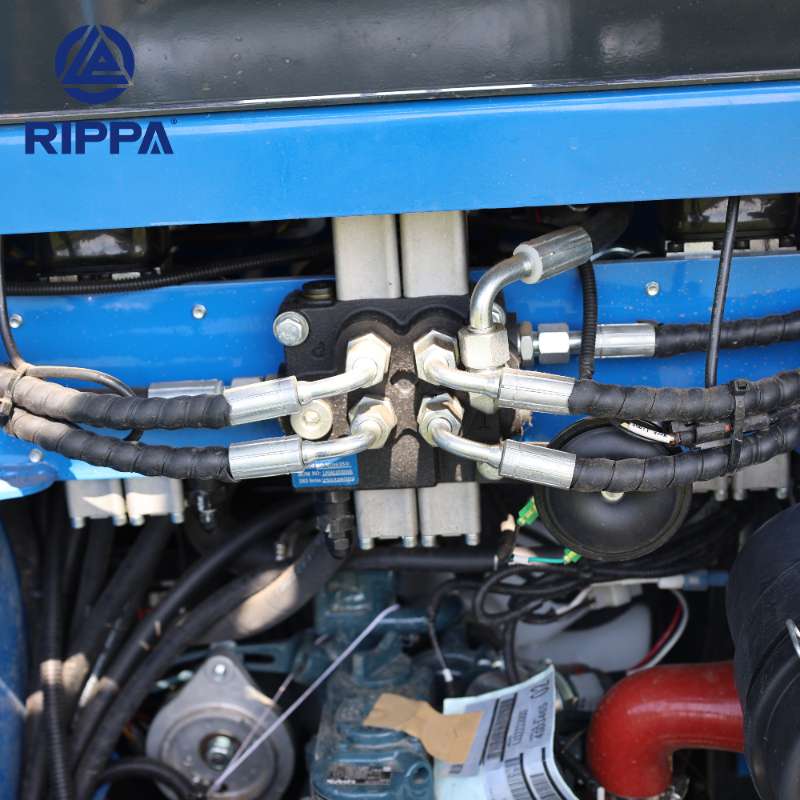

    Engine and Hydraulic System

       1.Engine Brand: Kubota Z482 (2-cylinder, diesel)

       2.Rated Power: 8.3kW / 11.1hp

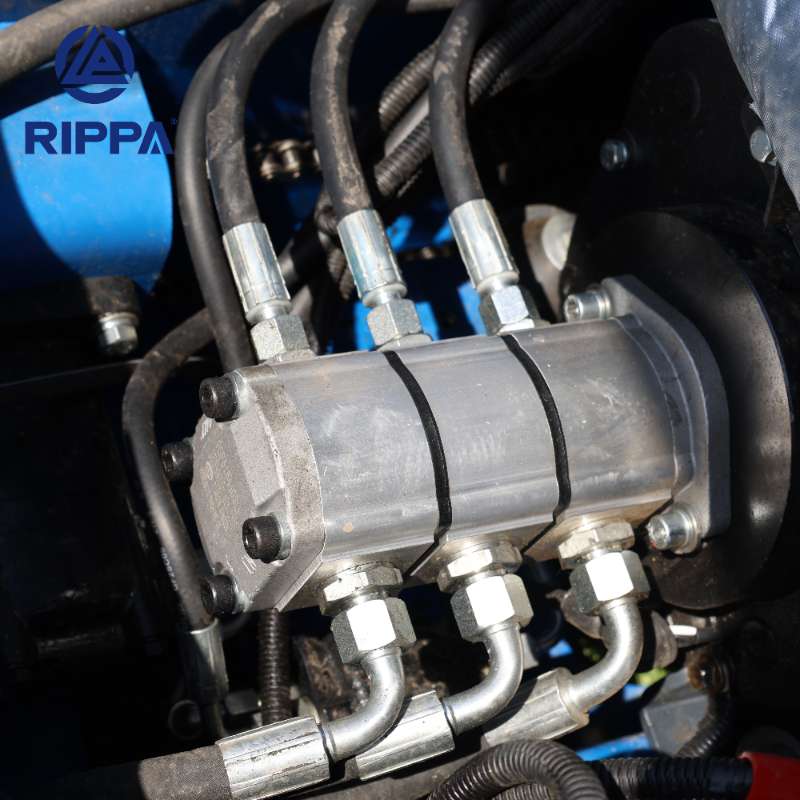

       3.Main Pump Type: Triple gear pump

       4.Hydraulic Flow Rate: 36+18+18 L/min (Total: 72 L/min)

       5.Hydraulic Pressure: 9.5–9.8–4.8 MPa

       6.Travel Motor: Single-speed orbital motor

       7.Valve Type: Mechanical multi-way valve (3x)

Performance and Load Capacity

        1.Operating Weight: 890kg / 1958 lb

        2.Rated Load Capacity: 350kg / 771 lb

        3.Tipping Load: 700kg / 1543 lb

        4.Bucket Capacity: 0.15m³ / 5.28 cu.ft

        5.Dump Height: 1553mm / 61.1 in

        6.Dump Reach: 550mm / 21.7 in

        7.Minimum Ground Clearance: 108mm / 4.25 in

        8.Max Discharge Height: 2080mm / 81.9 in

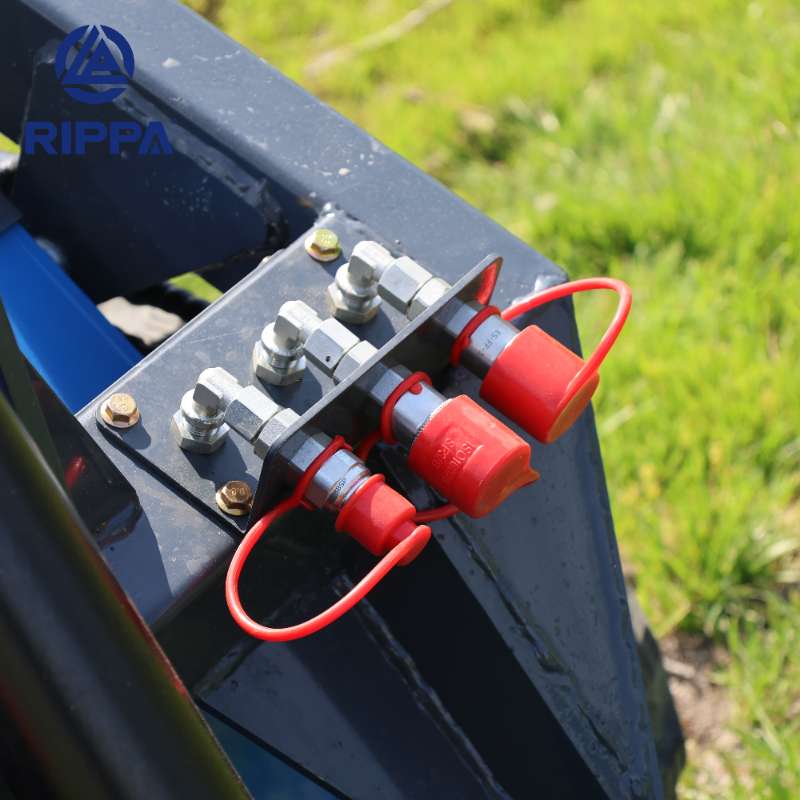

Hydraulic Auxiliary Circuit

      1.Flow Rate: 36L/min (9.5 gpm)

      2.Auxiliary Circuits: 2 groups, 5 ports

      3.Supported Attachments: All attachments under 550kg

      4.Optional Attachments:  (1) 4-in-1 Bucket  (2) Sweeper  (3)Breaker Hammer

🚜 Operator-Friendly Features

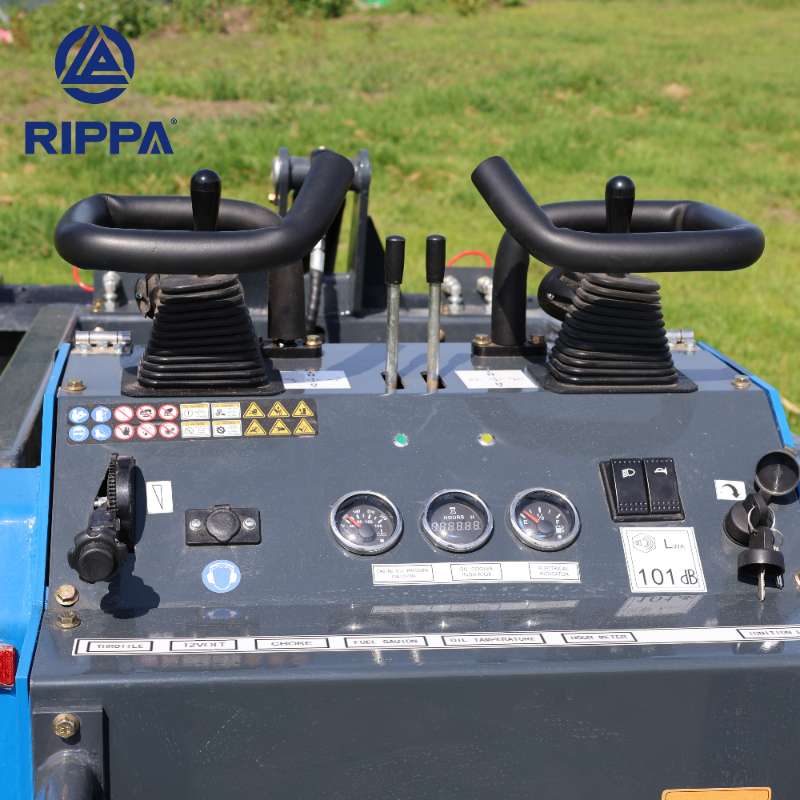

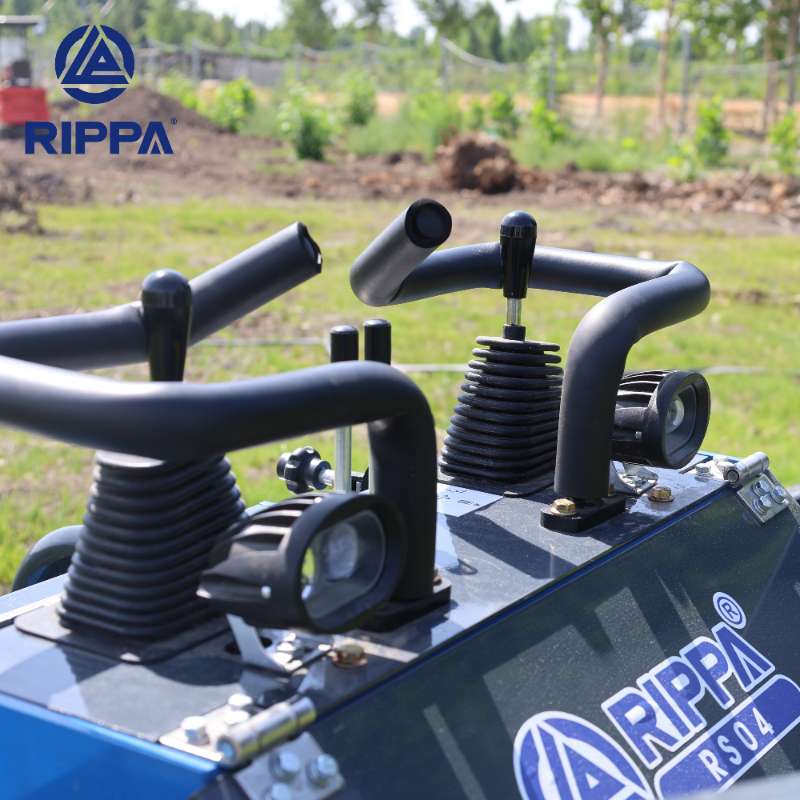

      Driving and Cabin

       1. Travel Speed: 3km/h (1.86 mph)

       2.Chassis: Standard wheel-type

       3.Cabin: Open cabin

       4.Quick Coupler: Optional mechanical quick-hitch

       5.Air Conditioning: Not available

🌍 Applications of RIPPA RS04 Skid Steer Loader

          1.Urban and residential construction

         2. Landscaping and green maintenance

          3.Agricultural material handling

          4.Warehouse and narrow space operations

✅ Why Choose RIPPA RS04 Skid Steer Loader?

          1.Direct factory supply with competitive pricing

          2.Global delivery with overseas warehouse support

          3.Robust build with trusted Kubota engine

          4.Versatile attachment compatibility

          5. OEM and dealership opportunities available
