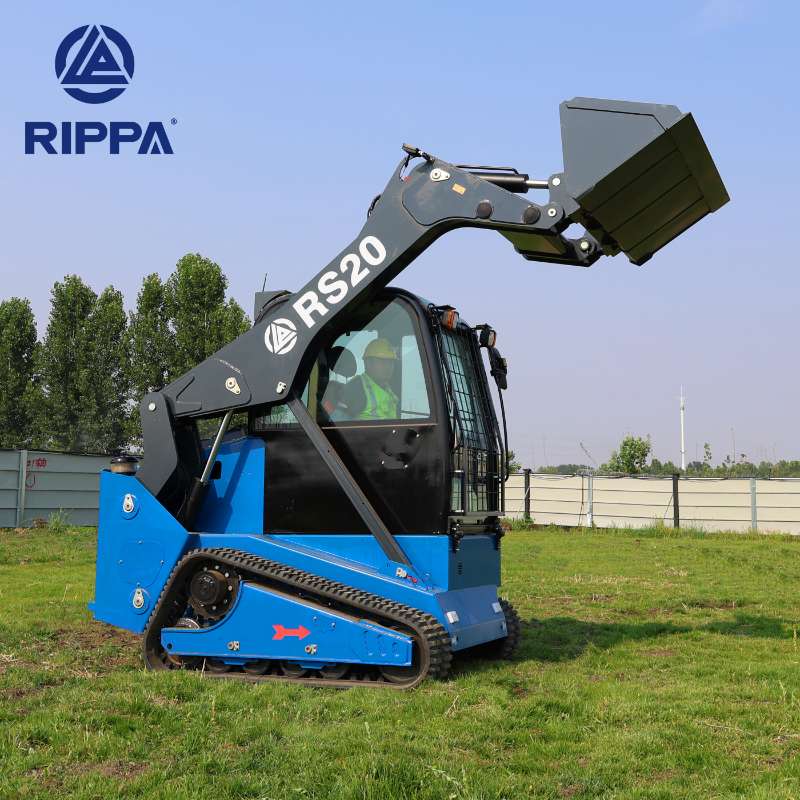

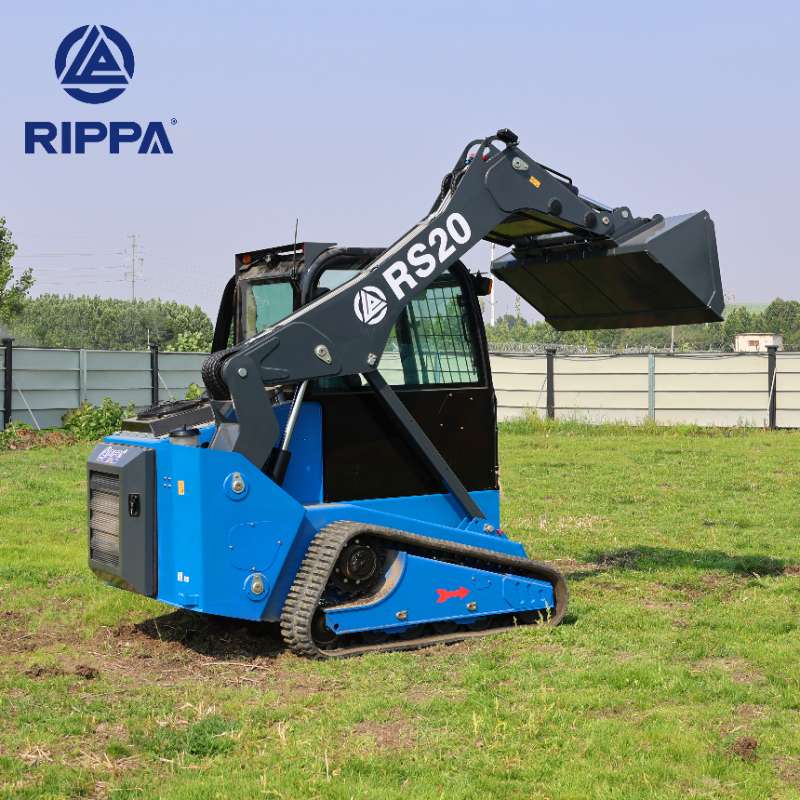

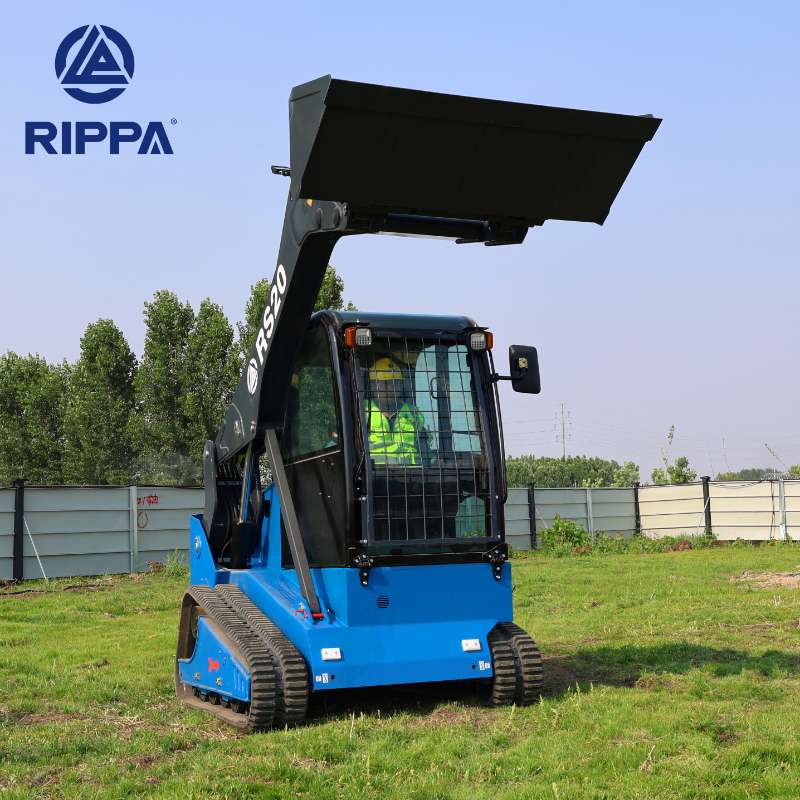

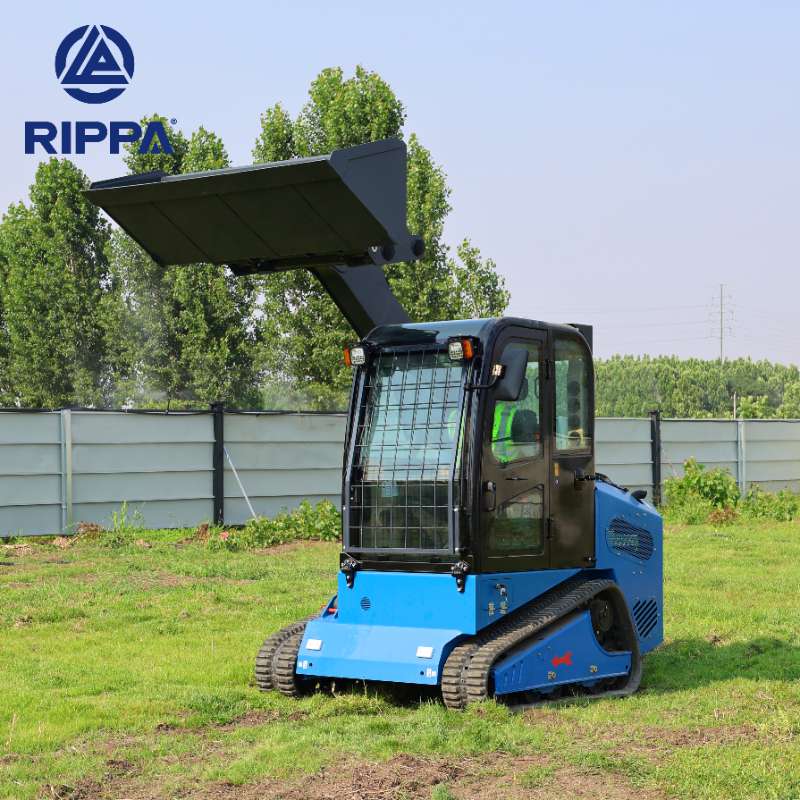

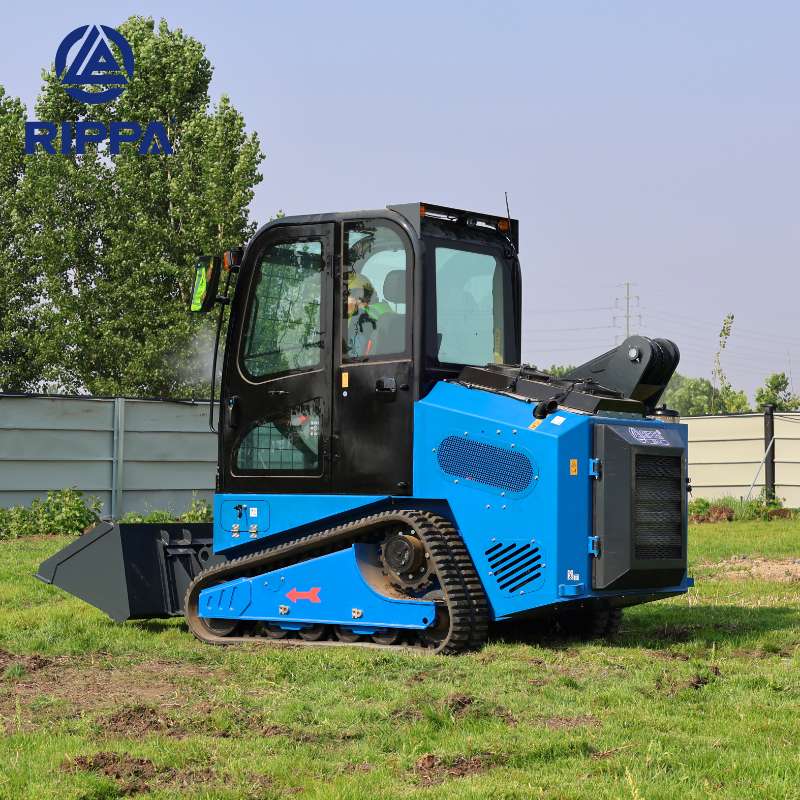

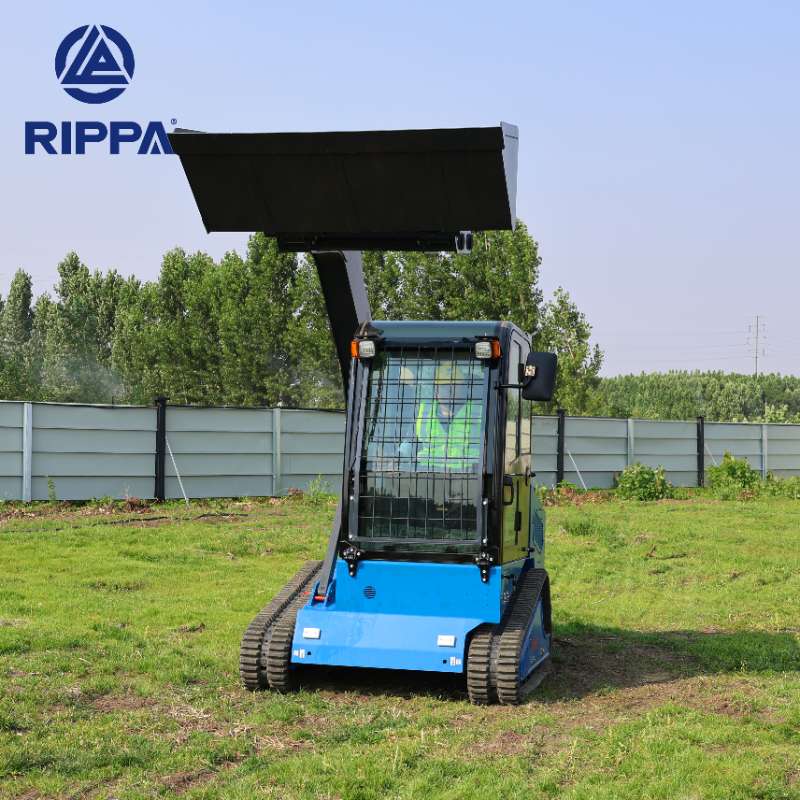

RIPPA RS20 Skid Steer Loader

The RIPPA RS20 skid steer loader is a high-performance, heavy-duty machine powered by a robust Yanmar 4TNV98C engine, engineered to tackle demanding construction, mining, and industrial operations. With unmatched hydraulic flow, dual-speed mobility, and multi-attachment compatibility, the RS20 delivers exceptional productivity in every task.

RS20 Technical Specifications at a Glance

Engine and Hydraulic System

Engine: Yanmar 4TNV98C (4-cylinder diesel)

Rated Power: 49.9kW / 66.9hp

Main Hydraulic Pump: Quad system (double closed pump + gear pump + makeup pump)

Hydraulic Flow:1.108 + 108 + 35.7 + 108 L/min 2.Total Flow: 359.7 L/min 3.Pressure: 25.8–25.8–9.4–28.5 MPa

Valve System: Load-sensing multi-way valve for precise flow control

Travel and Drive System

Motor Type: Dual-speed piston motor

Drive Speed:1.Low Speed: 5.8 km/h (3.6 mph) 2.High Speed: 10 km/h (6.2 mph)

Travel Mode: Track-type (standard)

⚙️ Capacity & Performance

1.Operating Weight: 4225kg / 9315 lb

2.Rated Load Capacity: 1050kg / 2315 lb

3.Tipping Load: 2100kg / 4629 lb

4.Bucket Capacity: 0.4m³ / 14.1 cu.ft

5.Max Discharge Height: 2250mm / 88.6 in

6.Dump Reach: 1360mm / 53.5 in

7.Minimum Ground Clearance: 230mm / 9.1 in

8.Max Discharge Distance: 580mm / 22.8 in

🧰 Multi-Function Attachments & Hydraulic Interface

The RIPPA RS20 skid steer loader supports a wide range of attachments with its dual auxiliary hydraulic lines and one return line, allowing for fast and easy connections.

Compatible Attachments (Quick Coupler Ready)

1.Rotary drill

2.Hydraulic breaker

3.Four-in-one bucket

4.Dozer blade

5.Sweeper

6.Ripper

7.Pallet forks

8.Auger & more

➡️ Universal quick attach interface – swap tools in 30 seconds for maximum uptime.

🛡️Comfort, Safety & Control

Cabin: Enclosed panoramic design for full protection and comfort

Entry: Side-entry for easier access

Climate Control: Air-conditioned operator space

Quick Coupler: Standard with optional upgrades

Safety: Enhanced visibility, rollover protection structure (ROPS)

🏗️Built for Demanding Applications

Ideal for:

      Large construction sites
      Mining and quarrying
      Heavy material handling
      Municipal road maintenance
      Snow removal and landscaping

The RIPPA RS20 skid steer loader is designed to excel in high-load, high-intensity environments, providing stable, continuous power and superior operational flexibility.

✅ Why Choose RIPPA RS20 Skid Steer Loader?

1.High-performance Yanmar diesel engine

2.Largest flow hydraulic system in its class (359.7 L/min)

3.Dual-speed drive system for jobsite agility

4.One machine for multiple jobs – universal quick-attach system

5.Fully enclosed, operator-friendly design

6.Factory direct – OEM/ODM & global dealership support

7.Available from overseas warehouse for fast delivery
