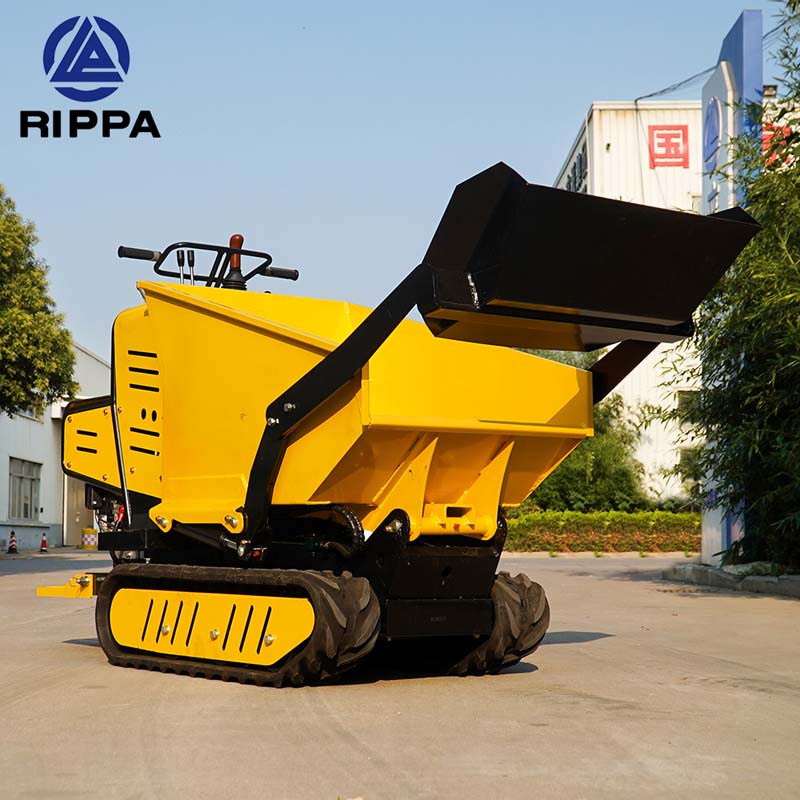

RD06 덤프 트럭

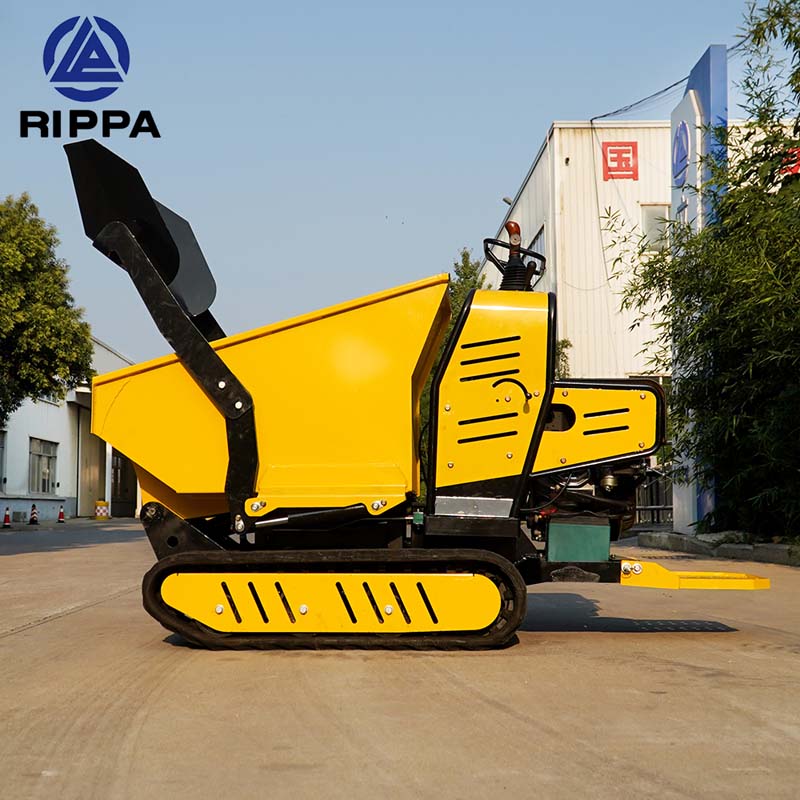

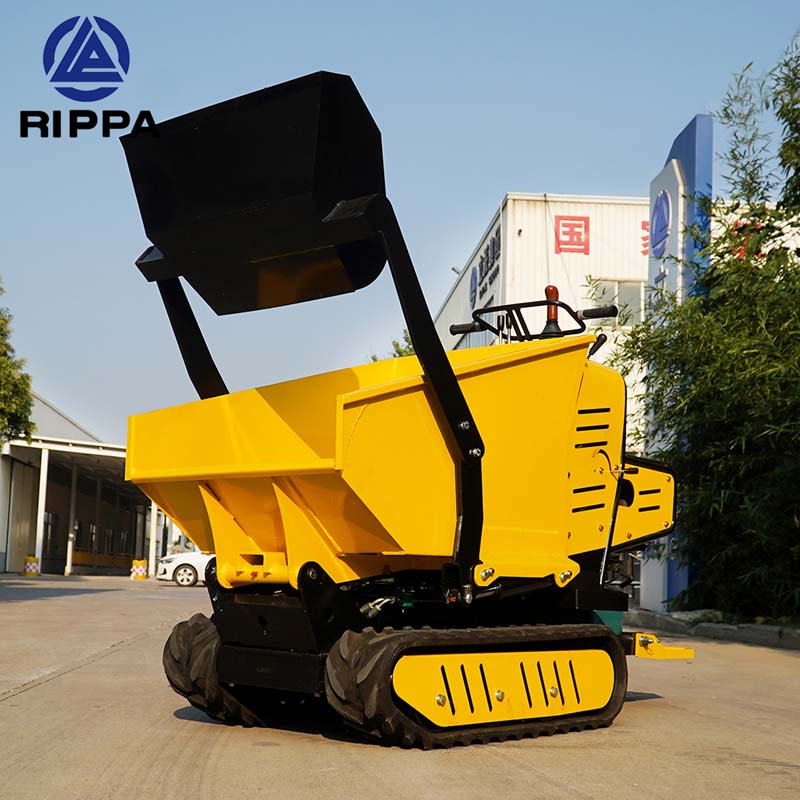

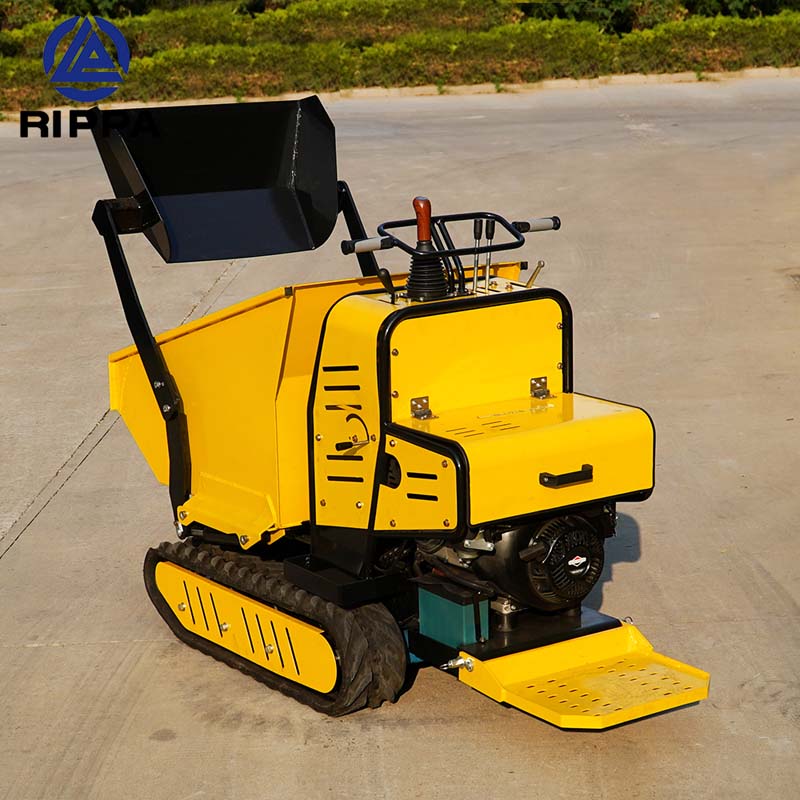

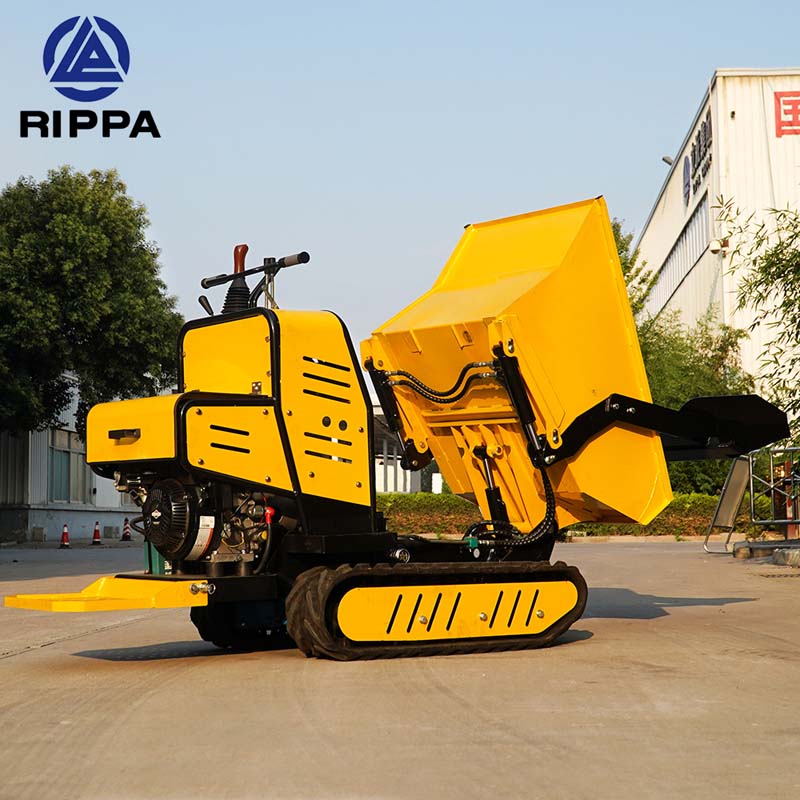

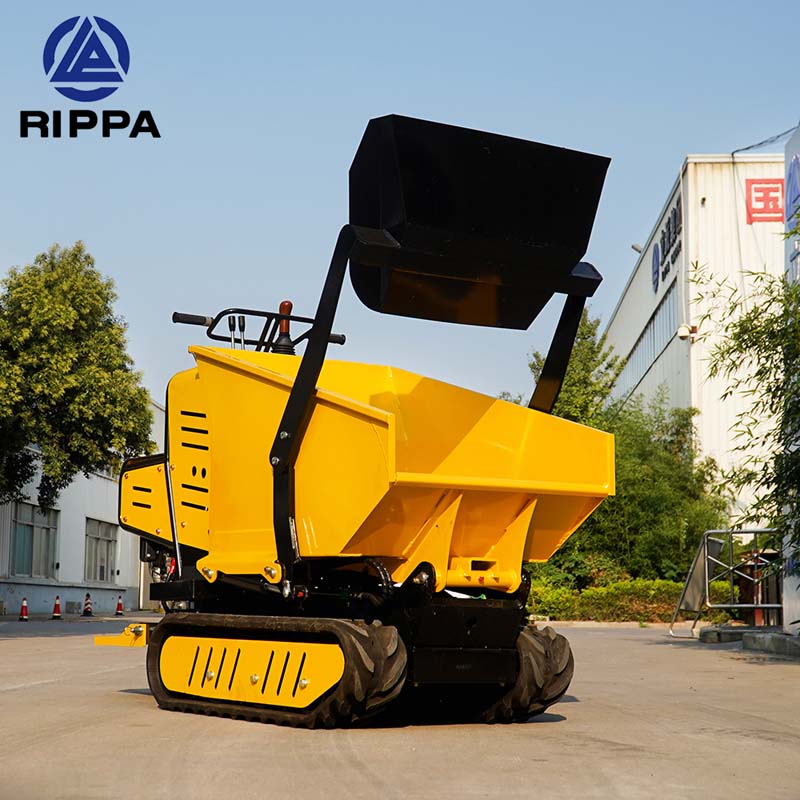

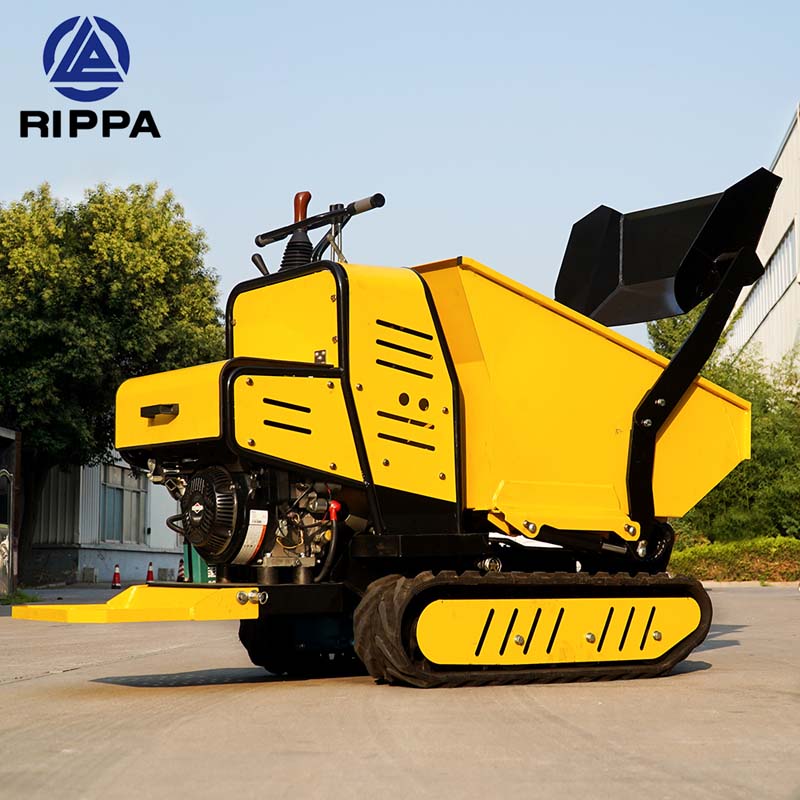

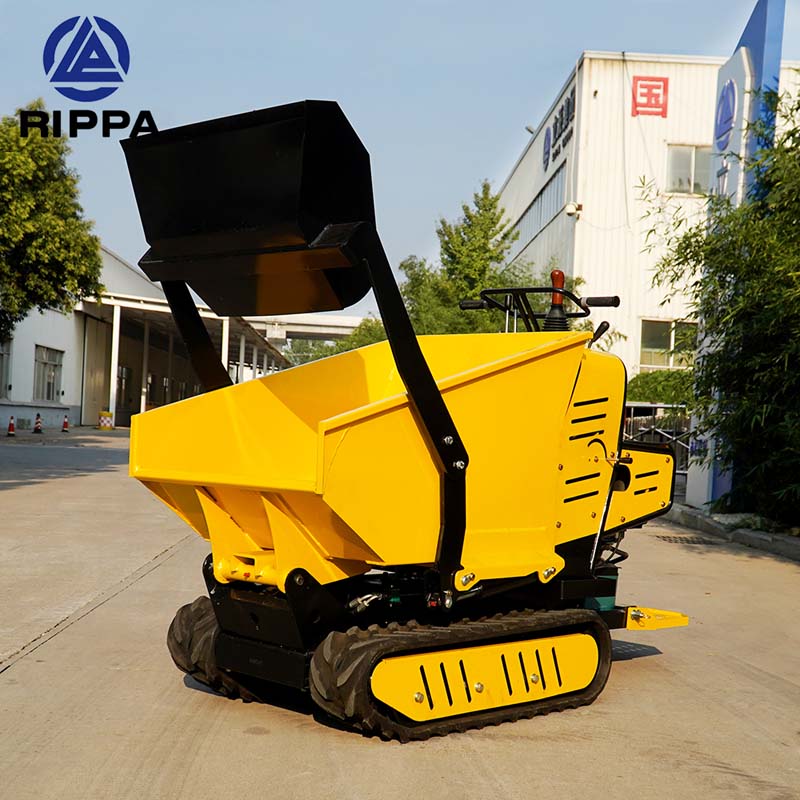

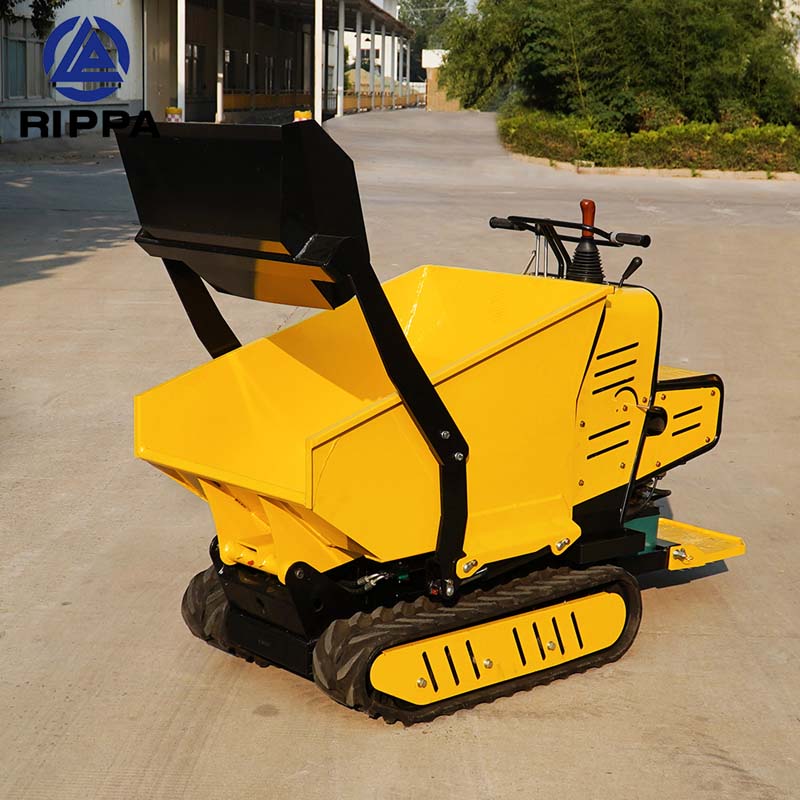

The RD06 dump truck is designed for complex environments and efficient short-distance transport, and is an ideal tool for construction, mining, agriculture and other fields. Integrating lifting, bulldozing, loading and other functions, this equipment meets modern transportation needs with its compact and stable design and excellent performance. RD06 is not only suitable for transporting bulk materials such as sand, gravel, earth, coal, but also wins the favor of users with its high cost performance.

Core features of RD06 Dump Truck

1. Multifunctional design
RD06 has a variety of operating capabilities, including lifting, bulldozing, loading and unloading, and can flexibly adapt to a variety of task requirements. This diverse function is particularly prominent in limited space and complex working environments.

2. Compact and efficient size
– Overall dimensions: 1670×780×1200 mm
– Compact structure, suitable for narrow space operations such as construction sites, mines, and storage places

3. Superior performance parameters
– Rated bucket capacity: 0.25 cubic meters, easily meeting short-distance transportation tasks in construction, agriculture and industry.
– Load capacity: can carry 350 kg of bulk materials.
– Maximum unloading height: 834 mm, convenient loading and unloading, significantly improving work efficiency.
– Climbing ability: 30%, stable operation even in steep slopes.

4. Environmentally friendly and low-energy engine
RD06 is equipped with an efficient engine system, the brand is Rato/B&S, the model is 420/XR2100, ensuring efficient use of fuel while reducing emissions, in line with modern environmental protection needs.

Excellent practicality and stability

1. Stability design
The 780 mm wide bucket design ensures the stability of the carrying process, and the 70 mm ground clearance makes it easy to adapt to most surface construction scenes.

2. High reliability hydraulic system
Equipped with a hydraulic system consisting of XINGZOU working pump and TF working valve, the output is stable and the operation is sensitive, which greatly improves the safety and efficiency of equipment use.

3. Easy maintenance
DETON travel motor and brand accessories make daily maintenance and repair of equipment easier, extending the service life of the equipment while reducing long-term operating costs.

Applicable fields

RD06 dump truck is a comprehensive and multifunctional equipment, widely used in the following scenarios:
1. Construction industry: used for earthwork handling, sand and gravel transportation and construction site cleaning.
2. Agriculture field: handling crops, fertilizer materials, and site maintenance tasks.
3. Mines and quarries: short-distance ore, coal and gravel transportation.

Technical Specifications

Total Mass: 520 kg
Rated Bucket Capacity:0.25 m3
Maximum Load:350 kg
Dimensions:1670×780×1200 mm
Maximum Unloading Height:834 mm
Gradability: 30%
Driving Speed:3 km/h

As an efficient short-distance transport solution, RD06 has won praise from users for its design flexibility, versatility and ease of operation. Whether it is the adaptability to narrow working conditions or its stable and reliable operating performance, RD06 can be your ideal handling tool. Choose RD06 Dump Truck to provide convenient and efficient support for your engineering and transportation!
