RIPPA R22 Mini Excavator Overview

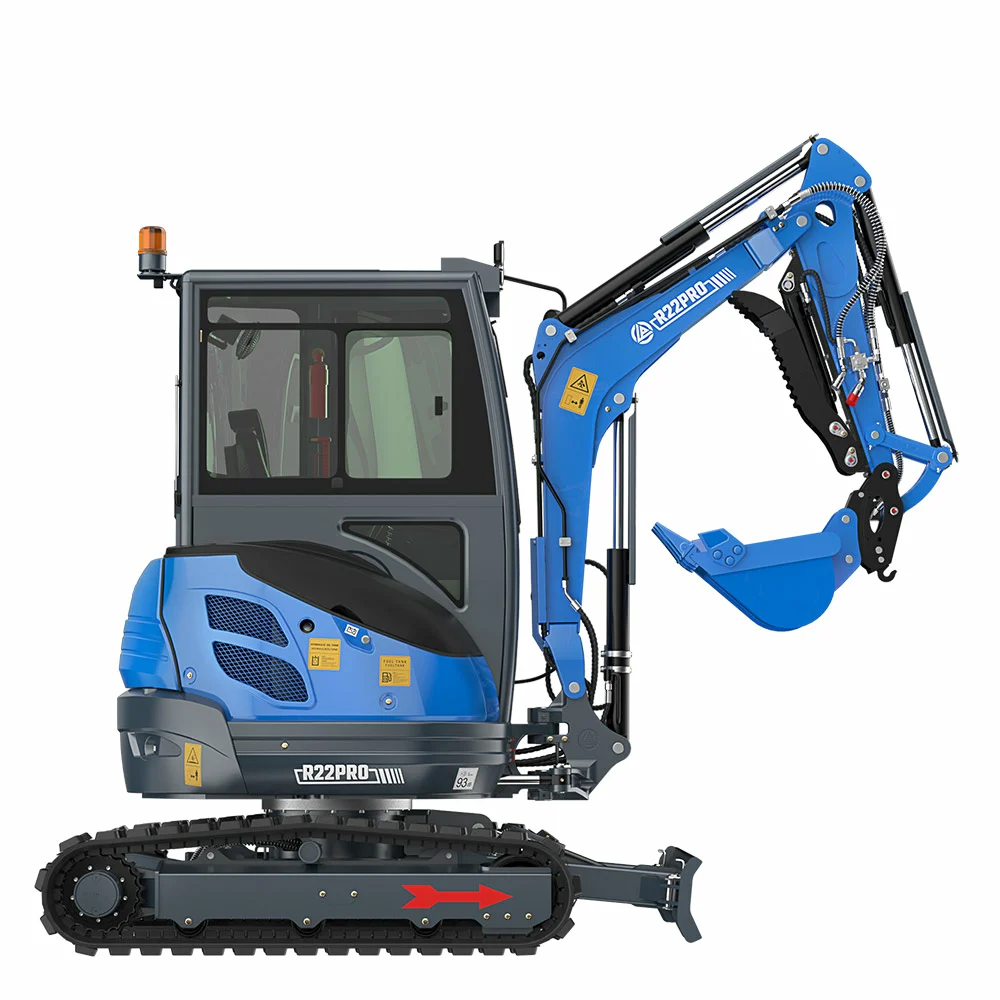

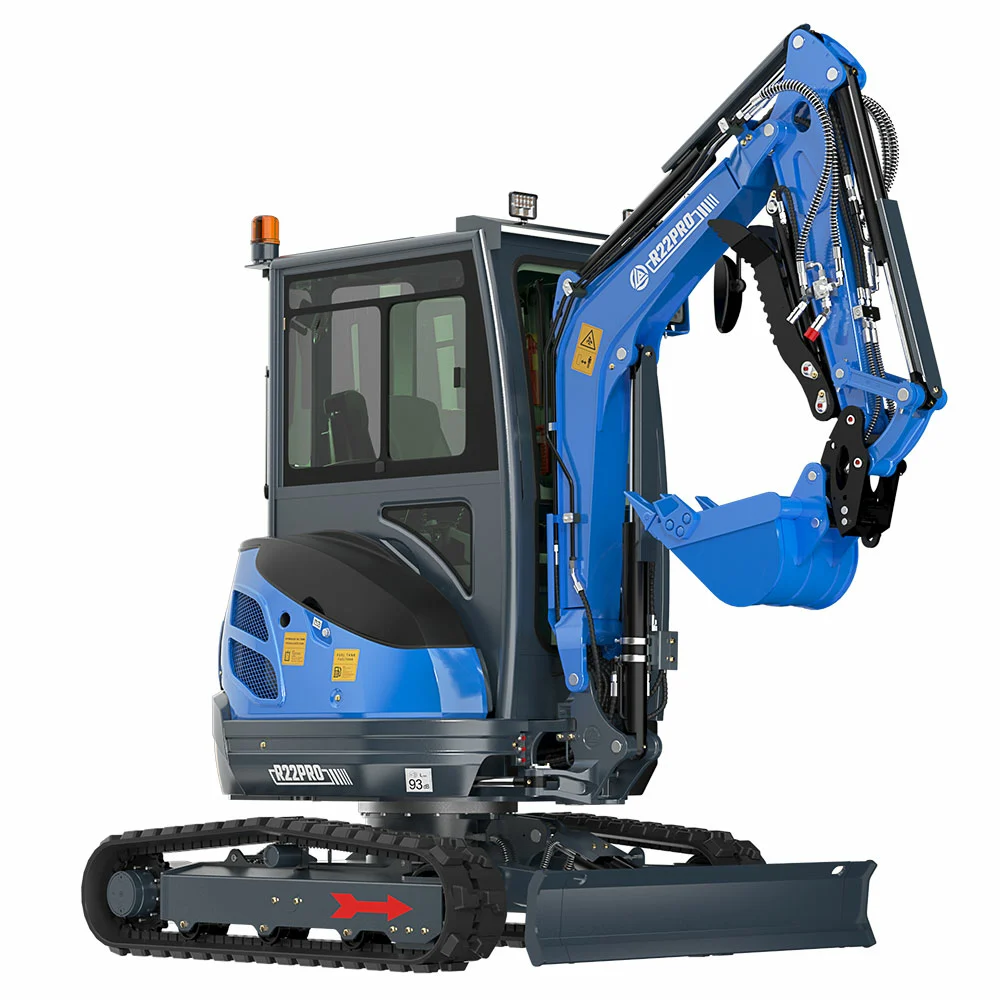

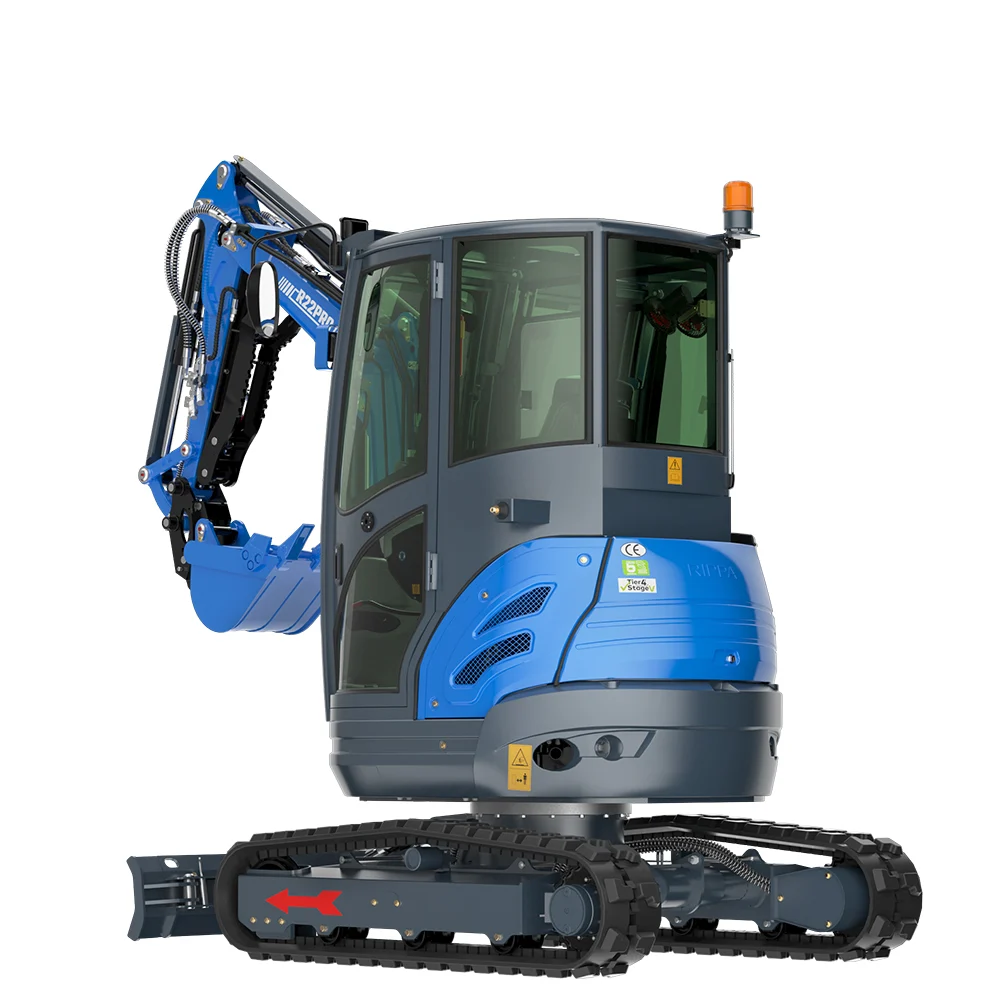

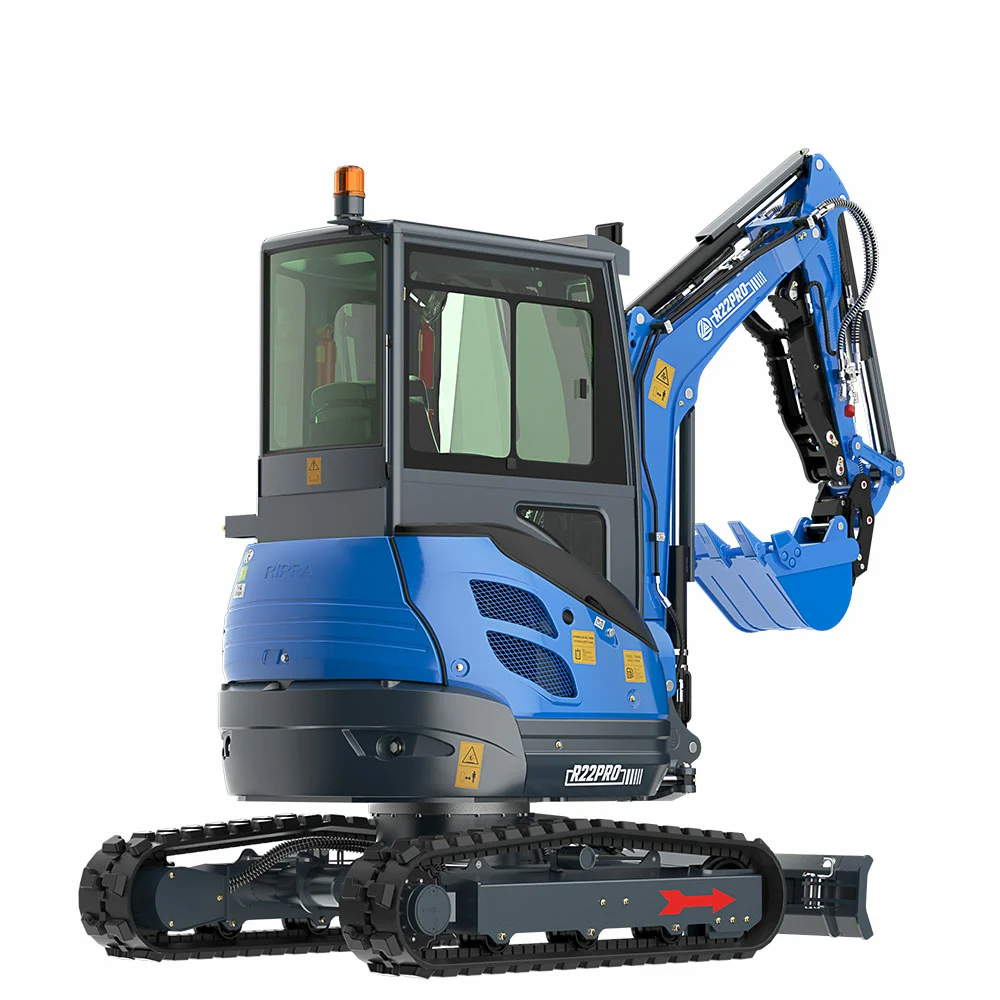

Den RIPPA R22 minigravemaskine is a 2.2-ton machine designed for versatility, durability, and compact operation. It is equipped with a Kubota D1105 engine delivering 18.2 kW (24.4 HP), ensuring powerful performance and excellent fuel efficiency.

With a hydraulic system pressure of 200 bar and max flow of 41.6 L/min, the R22 provides smooth and responsive operation. Its ZTS (Zero Tail Swing) design allows efficient operation in narrow job sites, making it ideal for urban projects and landscaping.

Key Features

●Engine: Kubota D1105, 3-cylinder, 18.2 kW (24.4 HP).

●Weight: 2200 kg for stable digging performance.

●Max Digging Depth: 2295 mm.

●Transport Width: 1100 mm, compact for easy transport.

●Travel Motor: Two-speed plunger motor with smooth speed control.

●Hydraulic System: 200 bar pressure, 41.6 L/min flow for high efficiency.

●Attachment Versatility: Hydraulic thumb clamp and quick-change system available.

●Track Type: Rubber tracks, reducing ground damage.

Advantages

●Compact size with high digging force.

●Perfect for urban construction, trenching, landscaping, and agricultural use.

●Factory-direct supply with global delivery.

●Operator safety with TOPS/ROPS protection.

Specifications (R22)

●Operating Weight: 2200 kg

●Engine: Kubota D1105, 18.2 kW / 24.4 HP

●Max Digging Depth: 2295 mm

●Max Dumping Height: 2650 mm

●Max Digging Radius: 4170 mm

●Hydraulic Flow: 41.6 L/min

●Travel Speed: Two-speed plunger motor
